Stop Lamp Switch: Troubleshooting

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Part diagnosis
    Items Cause Symptom
    Switch fuse Faulty fuse connection, Damaged fuse
    • DTC Code: P0504
    • Symptom: Shifting gear trouble, Starting failure, Cruise control function cancellation trouble, EPB function cancellation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.
    1. A waveform inspection is performed using an oscilloscope on each part during vehicle acceleration/braking. (Refer to stop lamp switch circuit inspection procedures - "Inspect the stop lamp circuit ")
    2. (Refer to the relevant repair procedures - "Repair Procedures ") of the part when something abnormal is discovered in the waveform. (Refer to the - "Repair Procedures ") of the relevant part and if necessary replace it).
    Relay fuse Faulty fuse connection, Damaged fuse
    • DTC Code: P0504
    • Symptom: Shifting gear trouble, Starting failure, Cruise control function cancellation trouble, EPB function cancellation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.
    Stop lamp switch
    • Damaged wiring of each part
    • Faulty connection to connector
    • Each part is defective
    • DTC Code: P0504
    • Symptom: Shifting gear trouble, Starting failure, Cruise control function cancellation trouble, EPB function cancellation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.
    Stop signal electronic module (If it applies)
    • DTC Code: P0504, C2130, C2131
    • Symptom: Shifting gear trouble, Starting failure, Cruise control function cancellation trouble, EPB function cancellation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.
    Engine control module (ECM)
    • DTC Code: P0504
    • Symptom: Shifting gear trouble, Cruise control function cancellation trouble
    Body control module (BCM) - Shifting gear trouble
    Shift-lock solenoid - Shifting gear trouble
    Inhibitor switch - Symptom: Shifting gear trouble, Starting failure, Cruise control function cancellation trouble, EPB function cancellation trouble
    Smart Key Unit (SMK) - Starting failure
    Electronic parking brake - Symptom: EPB function cancellation trouble, ESP OFF light illuminated.
    ABS/VDC control module (Pressure sensor) - Symptom: ESP OFF light illuminated.
  2. Symptom diagnosis
    Symptom Part that could be the cause
    Trouble starting Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, ABS/VDC control module, Each wire, Connector
    1. Inspect waveform using an oscilloscope on each part during vehicle acceleration/braking. (Refer to stop lamp switch circuit inspection Procedures - "Inspect the stop lamp circuit ")
    2. (Refer to the relevant repair procedures - "Repair Procedures ") of the part when something abnormal is discovered in the waveform. (Refer to the - "Repair Procedures ") of the relevant part and if necessary replace it).
    Trouble shifting gears Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, BCM, ECM, Inhibitor switch, Each wire, Connector
    ESP OFF light illuminated Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, ABS/VDC control module, Each wire, Connector
    P0504 Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, ECM, Each wire, Connector
    Stop lamp does not work Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, Wire/Connector disconnected
    Stop lamp always turns on Stop lamp switch, Stop signal electronic module, Wiring short circuit, Damaged fuse
  3. Stop lamp switch system diagnosis

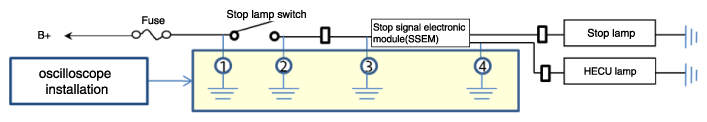

    Fig 1: Stop Lamp Switch Circuit
    G12026954Courtesy of HYUNDAI MOTOR AMERICA
    Symptom (When the ESP OFF lamp illuminated) System Remedy
    (1) Power Supply (B+) (2) End of the Stop Lamp Switch (3) SSEM Input (4) SSEM Output
    Switch internal open (1) (3) (3) (3) Replace a new one and check it
    Switch internal short (1) (1) (1) (1) Check the stop lamp switch after removing it
    1. Switch failure: Replace a new one
    2. Wiring failure: Check part that could be the cause
    SSEM internal short (1) (2) (2) (1) or (3) Check the SSEM after removing it
    1. SSEM failure: Replace a new one:
    2. Wiring failure: Check the part that could be the cause
    SSEM Internal open (1) (2) (2) (3) Check SSEM after removing it
    Power supply open (3) (3) (3) (3) Check the power supply connector or the fuse
    Power supply short (Current reduction) (1) (2) (2) (1) or (3) It the power supply line Is shorted. SSEM ON-OFF may not be operating well due to the amount of current reduction. Check the fuse damage
    Failure; between SSEM and output (1) (2) (3) (3) Check the connector and the wiring
    Failure between SSEM and Stop lamp (Not operating the stop lamp. No signals on GDS) (1) (2) (2) (2) Check the connector end the wiring
    (1) Always ON
    (2) ON - OFF operation
    (3) Always OFF

    SSEM: Stop Signal Electronic Module

  4. (Refer to DTC guide when the related DTC codes are displayed - "DTC INDEX ")
