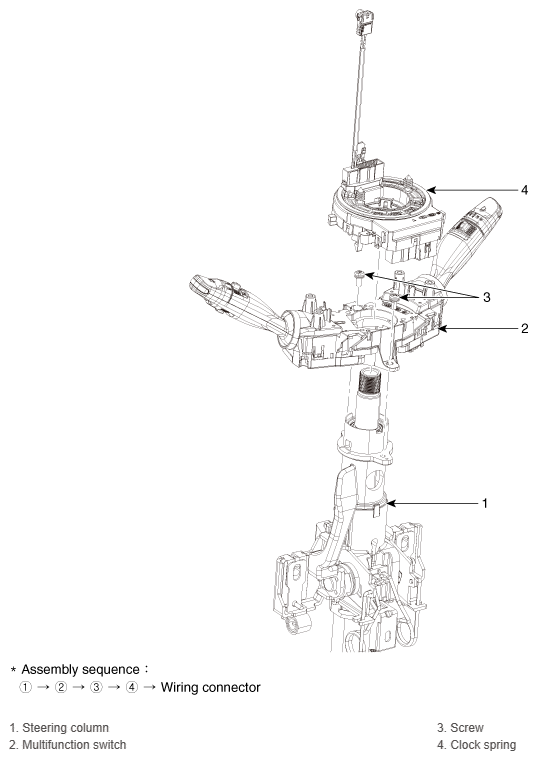

Components And Components Location: Component
WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

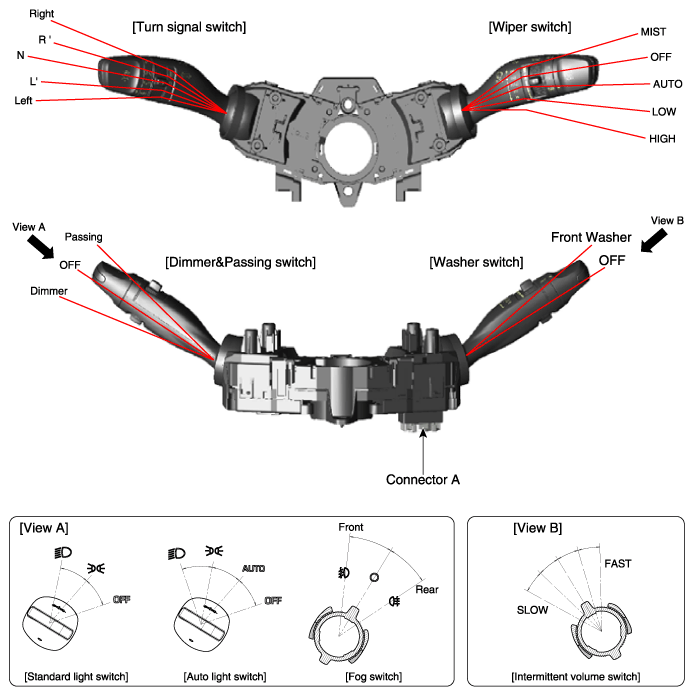

| Connector A | No. | Description | Remark |
|---|---|---|---|
| 1 | Front wiper switch signal | Mist/Off/Int (Auto)/Low/High | |
| 2 | Front wiper low backup signal | Wiper low backup | |
| 3 | - | - | |
| 4 | - | - | |
| 5 | - | - | |
| 6 | Front washer switch | Washer motor | |
| 7 | Wiper intermittent volume switch | Int volume (Fast - Low) | |
| 8 | IGN2 | Battery (+) | |
| 9 | GND | Multifunction switch ground | |
| 10 | Foglamp switch | Front foglamp | |
| 11 | GND | BCM ground | |
| 12 | Turnsignal switch | Turn (LH)/Turn (RH) | |
| 13 | Dimmer & Passing switch | Dimmer/Passing | |
| 14 | Light switch | Off/Auto/Tail/Low | |
| 15 | Headlamp low backup signal | Headlamp low backup | |
| 16 | - | - |
