Repair Procedures: Removal
WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Precautions for using the plastic pulley
- Take care not to give physical impact to the plastic pulley.
If exposed to the impact of dropping and collision, the pulley should not be used although not damaged.

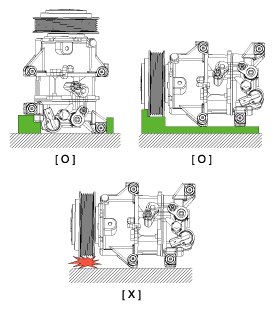

- Be careful not to place the pulley to downwards of the floor or table.
- Be careful not to apply the external force and impact on pulley while moving or using.
- Be careful not to apply force to the pulley.
- If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
- Disconnect the negative (-) battery terminal.
- Recover the refrigerant with a recovery/charging station.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")
- Loosen the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
- Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
NOTE:- Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
- Disconnect the compressor switch connector (A).
- Remove the compressor (A) by loosening the mounting bolts.
Tightening torque:
20.0 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 lb-ft)
