[Nu Engine]

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

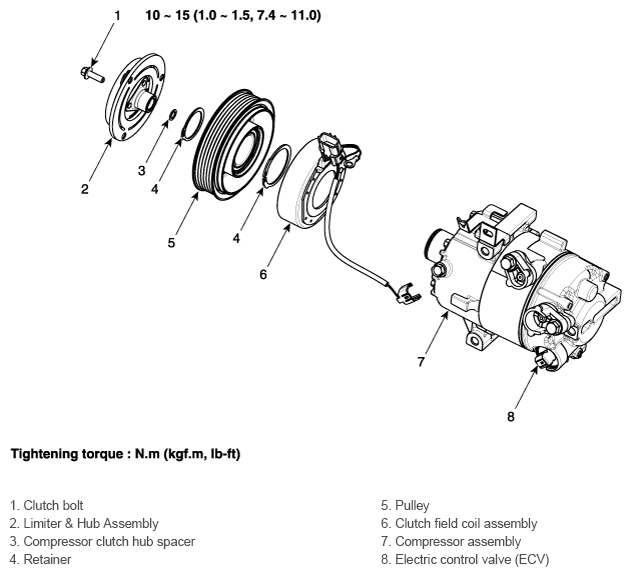

Fig 1: Compressor Components With Torque Specifications
G12023165Courtesy of HYUNDAI MOTOR AMERICA
