Repair Procedures: Replacement: [A/T]

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

To remove the gear knob & gear boot (A) pull both of them up.

Fig 1: Removing Gear Knob & Gear Boot
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rubber mat (A).

Fig 2: Locating Rubber Mat
Courtesy of HYUNDAI MOTOR AMERICA

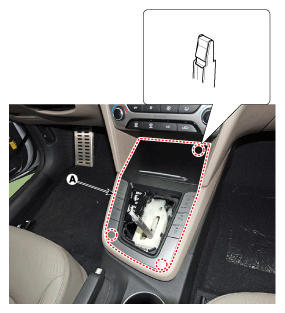

Using a screwdriver or remover, remove the floor console upper cover (A).

Fig 3: Locating Floor Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A) from the floor console upper cover.

Fig 4: Locating Floor Console Upper Cover Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the console garnish (A).

Fig 5: Locating Console Garnish
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the parking brake cover (A).

Fig 6: Locating Parking Brake Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the storage box pad (A).

Fig 7: Locating Storage Box Pad
Courtesy of HYUNDAI MOTOR AMERICA

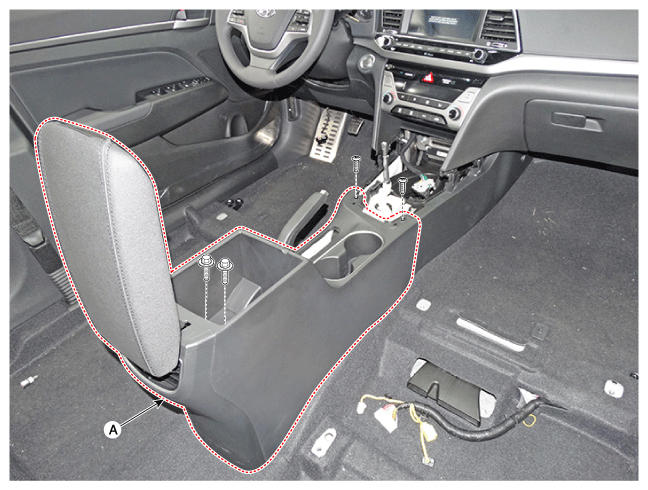

After loosening the mounting screws and bolts, remove the floor console assembly (A).

Fig 8: Locating Floor Console Assembly With Mounting Screws And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 9: Locating Connectors
Courtesy of HYUNDAI MOTOR AMERICA

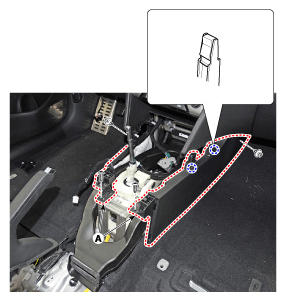

Loosen the mounting screws and remove the console front complete assembly (A).

Fig 10: Locating Console Front Complete Assembly With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
