Body Repair

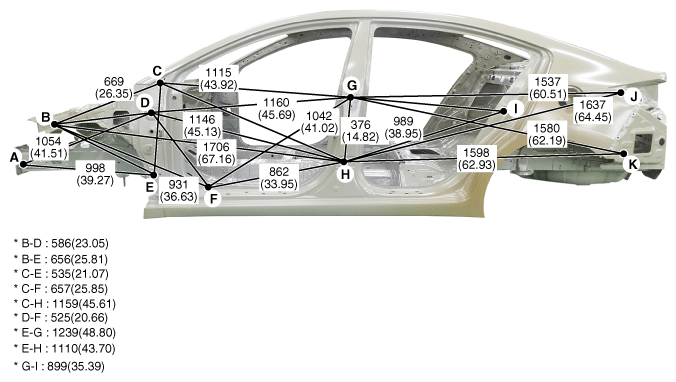

Fig 1: Side Body Actual-Measurement Dimensions
G12030769Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]

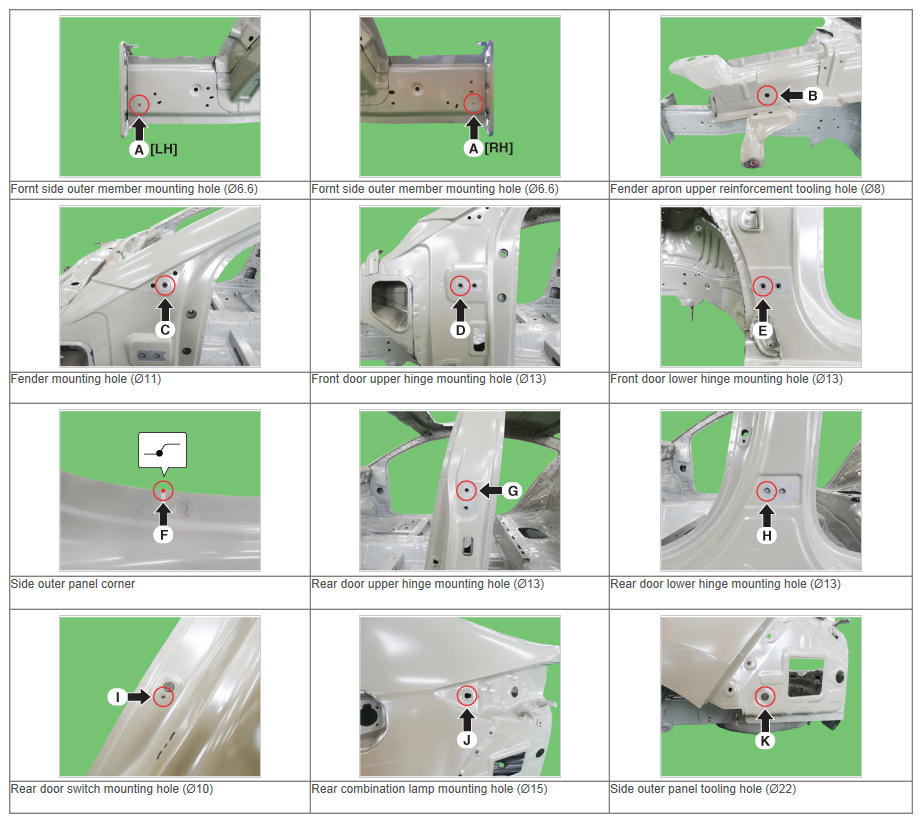

Fig 2: Side Body Mounting Hole Points Location
G12030770Courtesy of HYUNDAI MOTOR AMERICA
