Interior D

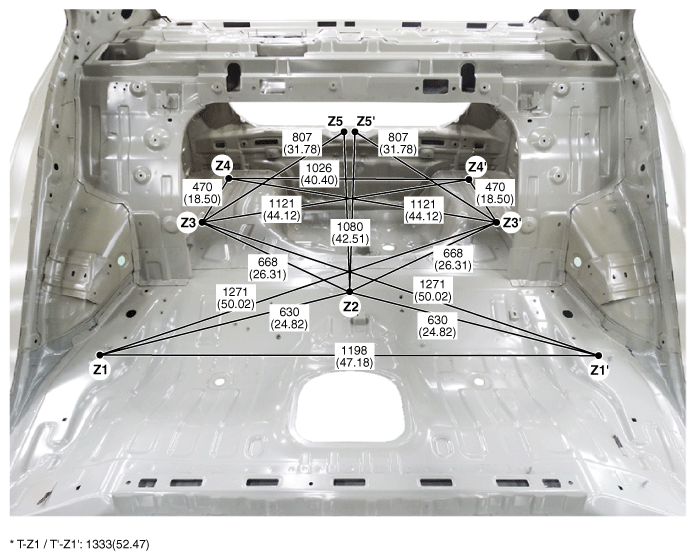

Fig 1: Interior D Actual-Measurement Dimensions

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]

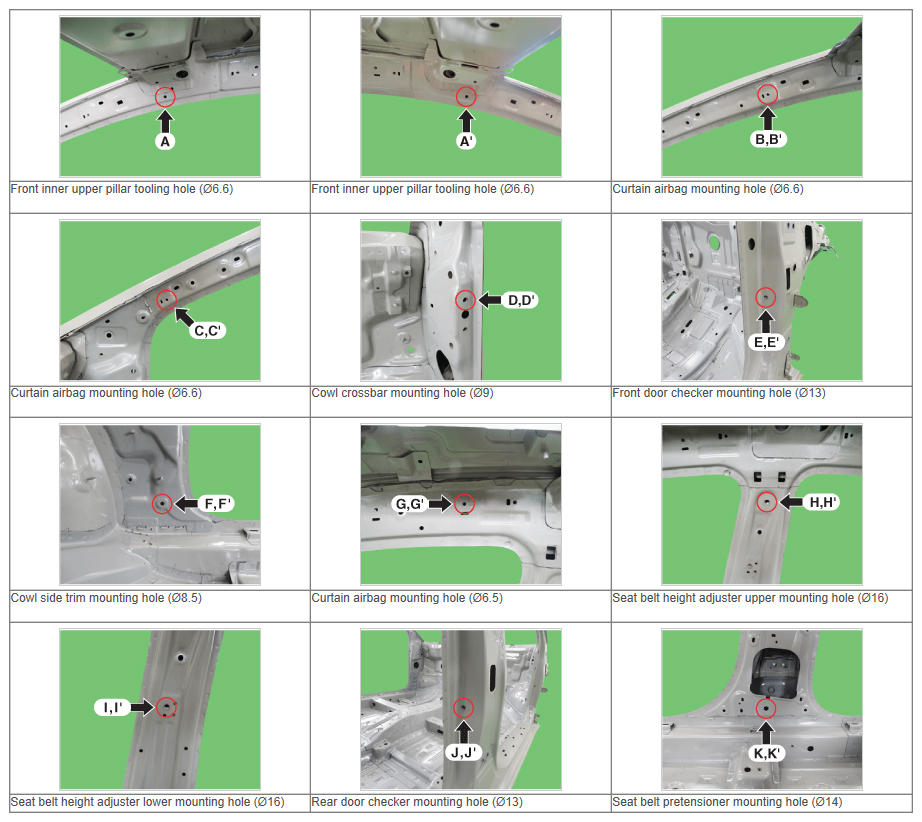

Fig 2: Interior D Mounting Hole Points Location (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

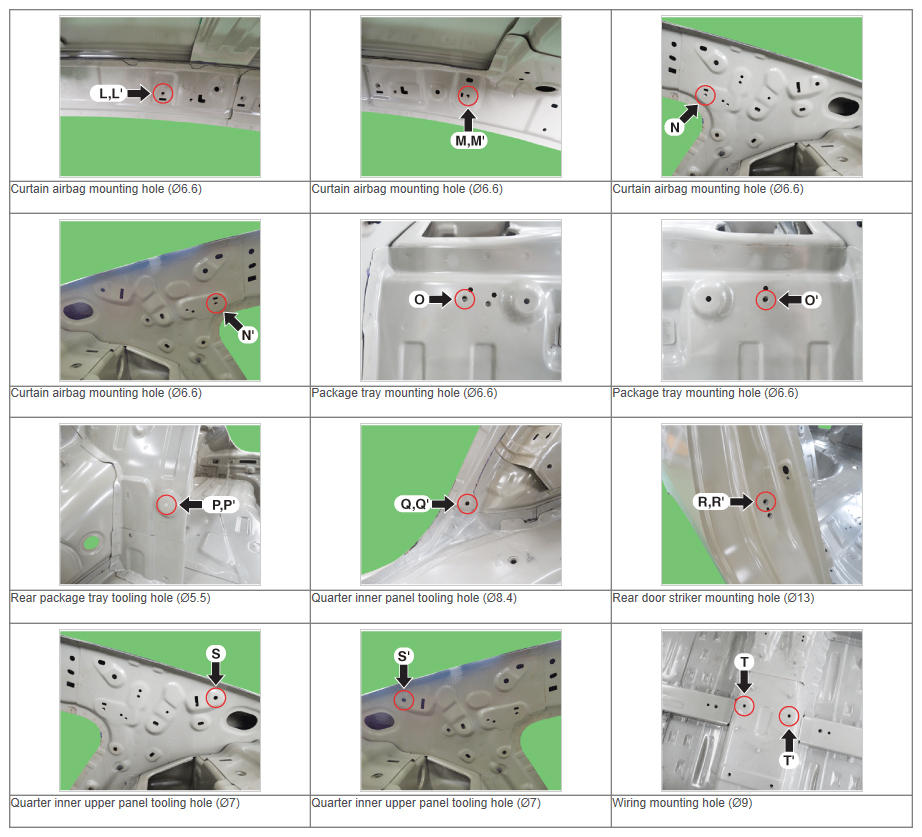

Fig 3: Interior D Mounting Hole Points Location (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

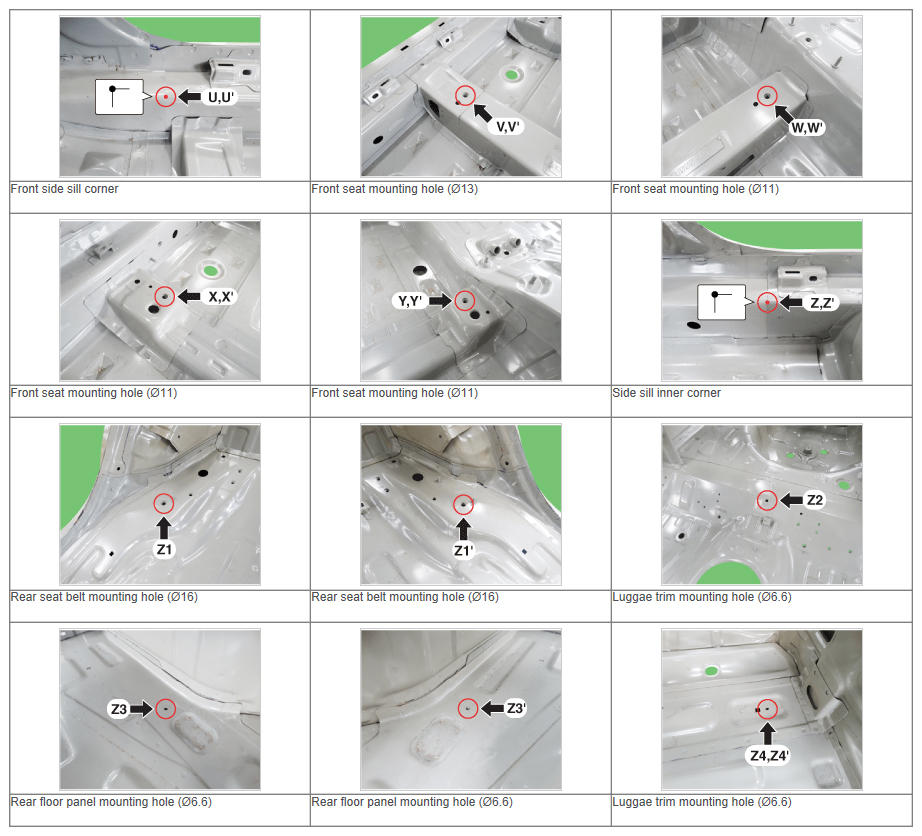

Fig 4: Interior D Mounting Hole Points Location (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

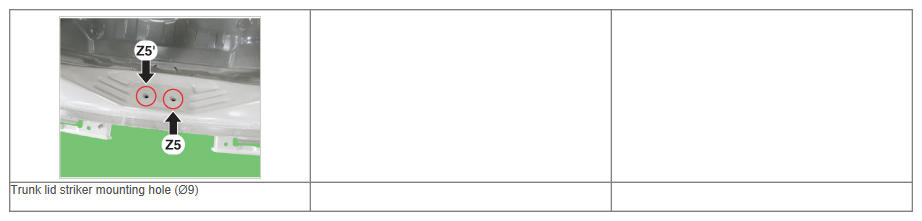

Fig 5: Interior D Mounting Hole Points Location (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
