Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover assembly.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

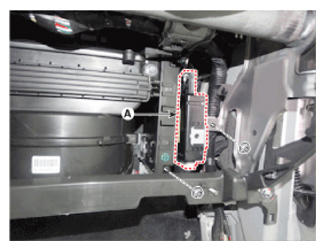

  3. Remove the smart key unit (A) after loosening the mounting nuts.
    G12645180Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the smart key unit connectors (A).
    G12645181Courtesy of HYUNDAI MOTOR AMERICA
