Repair Procedures: Removal

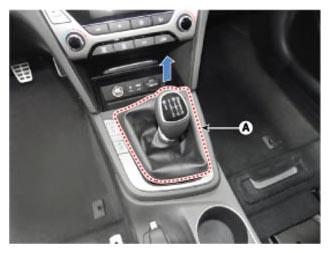

  1. Remove the shift lever knob & boots (A) pull both of it up.
    G12646684Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

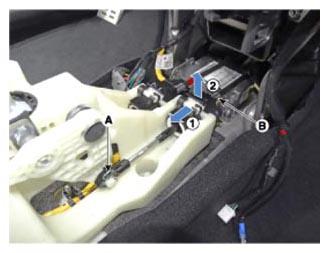

  3. Disconnect the select cable (B), after removing the snap pin (A).
    G12646685Courtesy of HYUNDAI MOTOR AMERICA

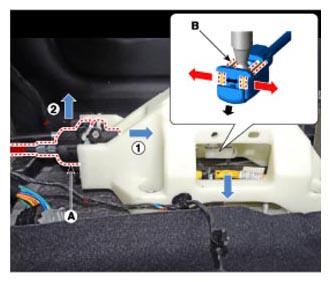

  4. Remove the shift cable.
    1. Remove the cable socket (A), after release the lock.
    2. Remove the clip, in the shape of a "U"(B), from the cable end by spreading it towards both sides.
      G12646686Courtesy of HYUNDAI MOTOR AMERICA

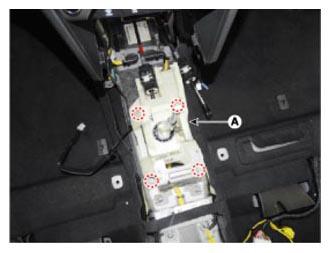

  5. Remove the shift lever assembly (A) after removing the bolts.

    Tightening Torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G12646687Courtesy of HYUNDAI MOTOR AMERICA
