Components And Components Location: Components

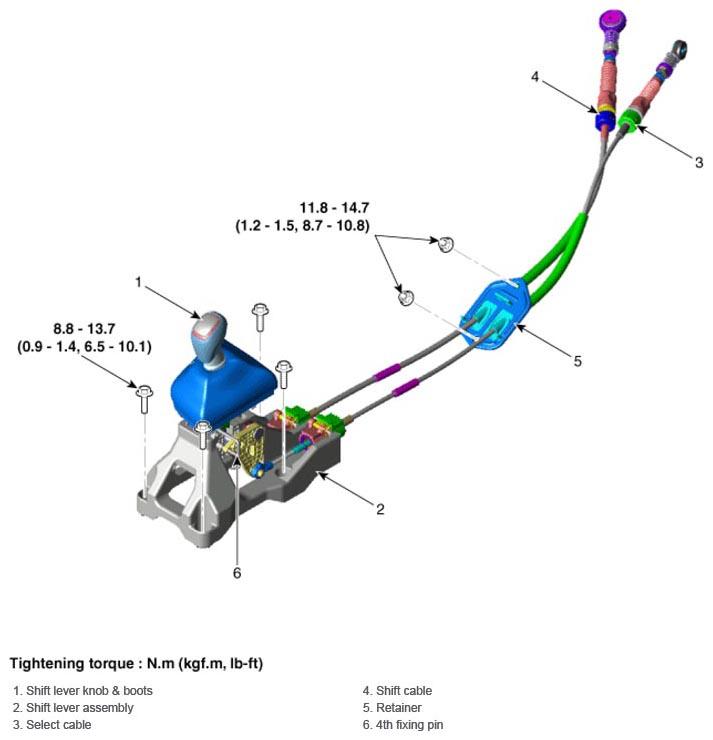

Fig 1: Locating Shift Lever Components With Torque Specification

G12646683

Courtesy of HYUNDAI MOTOR AMERICA
