Components And Components Location: Components

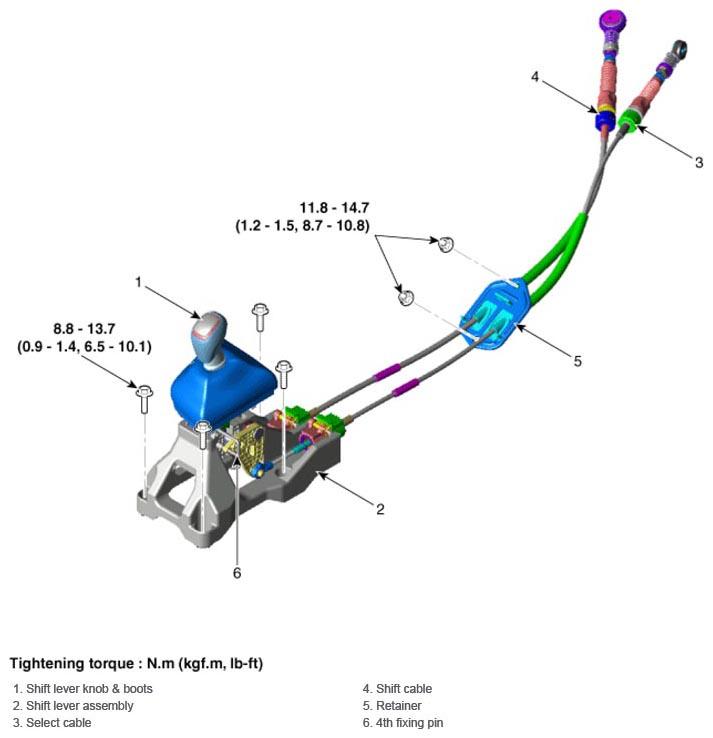

Fig 1: Locating Control Cable Components With Torque Specification

G12646689

Courtesy of HYUNDAI MOTOR AMERICA
