Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Pull the knob (A) in the direction of "F" and remove the knob.
    G12646973Courtesy of HYUNDAI MOTOR AMERICA

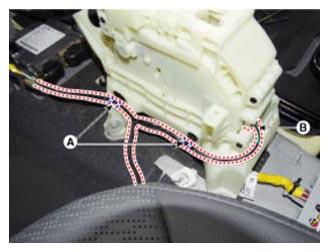

  3. Disconnect the connector (B) from the shift lever.
  4. Disconnect the fixing clip (A) of wiring.
    G12646974Courtesy of HYUNDAI MOTOR AMERICA

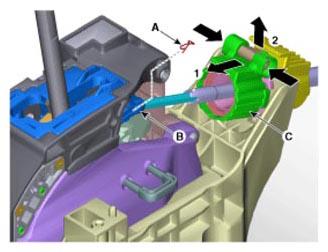

  5. Disconnect the shift cable.
    1. Remove the snap pin (A).
    2. Disconnect the cable eye end (B) from the shift lever.
    3. Disconnect the cable socket (C) from the shift lever.
      G12646975Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:

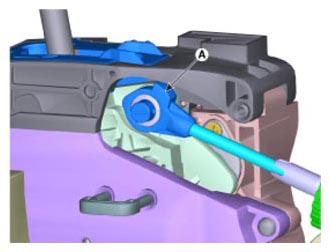

      • Lug (A) must assemble upward.
        G12646976Courtesy of HYUNDAI MOTOR AMERICA

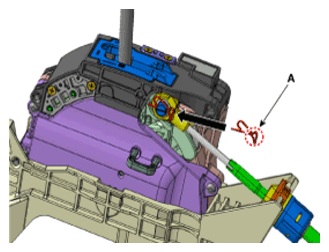

      • Bending area (A) must assemble the front.
        G12646977Courtesy of HYUNDAI MOTOR AMERICA

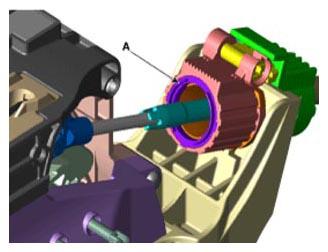

      • Push in the cable socket at bracket of AT lever and must confirm that assembly sound and portion (A) of sock protrude from cap of socket.
        • Portion (A) located inside the cap before assembled.
        • Portion (A) must protrude after socket assembled.
          G12646978Courtesy of HYUNDAI MOTOR AMERICA

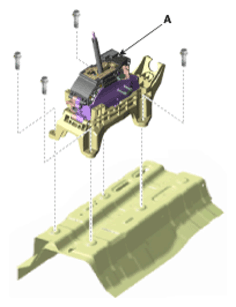

  6. Remove the bolts and then shift lever assembly (A).

    Tightening Torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G12646979Courtesy of HYUNDAI MOTOR AMERICA
