Components Location

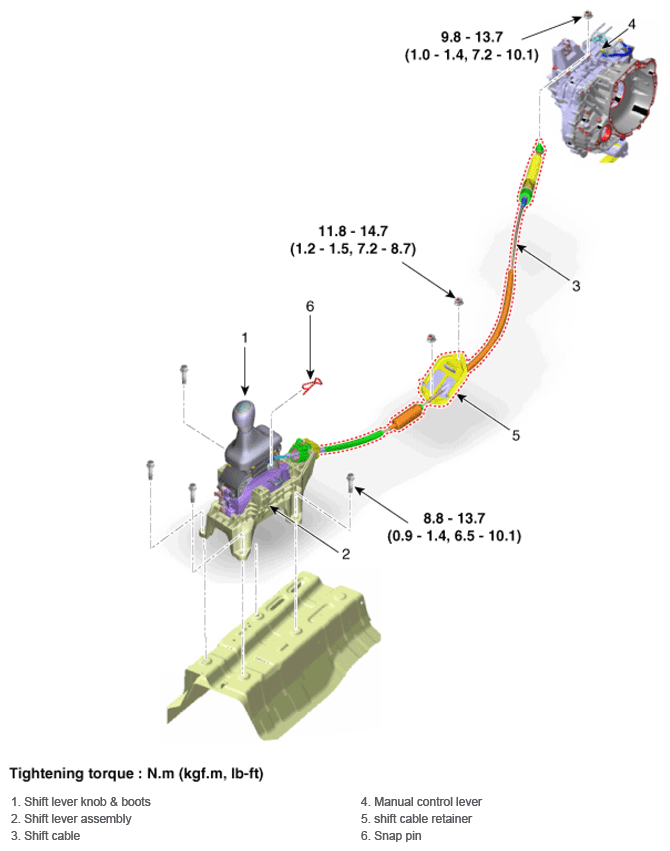

Fig 1: Locating Shift Cable Components With Torque Specification
G12646980Courtesy of HYUNDAI MOTOR AMERICA
