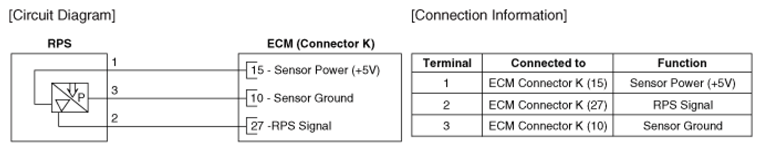

Home >> Hyundai >> 2018 >> Elantra GT Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram >> [A/T] >> Notes
