Home >> Hyundai >> 2018 >> Elantra GT Base, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Front Wheel Speed Sensor >> Components And Components Location >> Components

Components And Components Location: Components

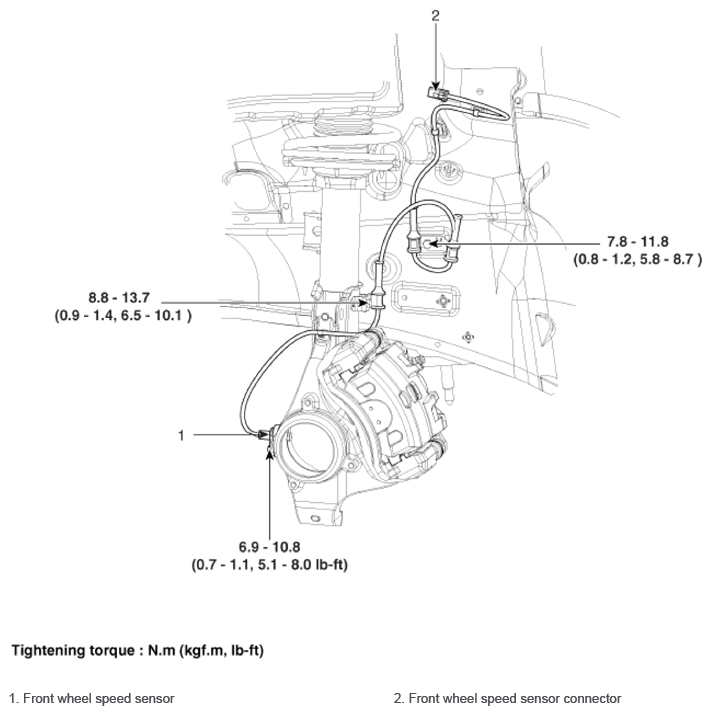

Fig 1: Locating Front Wheel Speed Sensor Components With Torque Specification

G12644561

Courtesy of HYUNDAI MOTOR AMERICA
