Description And Operation: Description
- The Oil Pump is powered by the engine. ATF passes through the oil filter and gets distributed along the oil channels.
- The Oil becomes highly pressurized as it exits the oil pump and passes through the line pressure valve before being fed to the clutch & brake control valve, clutch, and brakes.
- TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.

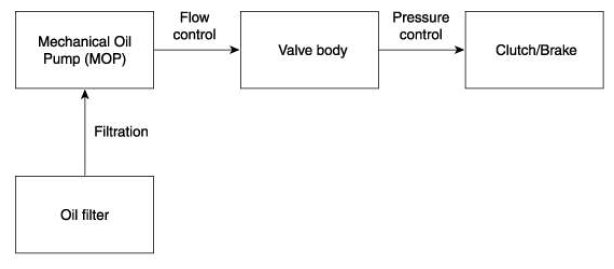

Flow Of The Hydraulic System
