Repair Procedures: Reassembly

  1. Install the dust cover (A).
    G12599066Courtesy of HYUNDAI MOTOR AMERICA
  2. Install the hub bearing to the knuckle assembly.
    1. Lay the knuckle assembly (A) on press.
    2. Lay a new hub bearing upon the knuckle assembly (A).
    3. Lay a suitable adapter (B) upon the hub bearing.
    4. Install the hub bearing to the knuckle assembly by using press.

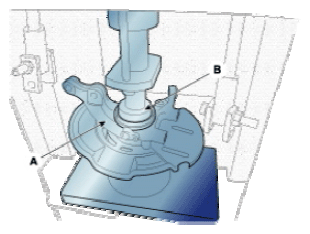

    G12599067Courtesy of HYUNDAI MOTOR AMERICA
    • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly. Always use a new wheel bearing assembly.
  3. Install the hub assembly to the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay the knuckle assembly (C) upon the hub assembly (A).
    3. Lay a suitable adapter (D) upon the hub bearing.
    4. Install the hub assembly (A) to the knuckle assembly (C) by using press.

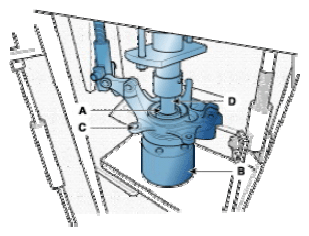

    G12599068Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
  4. Install the snap ring (A).
    G12599069Courtesy of HYUNDAI MOTOR AMERICA
