Repair Procedures: Disassembly

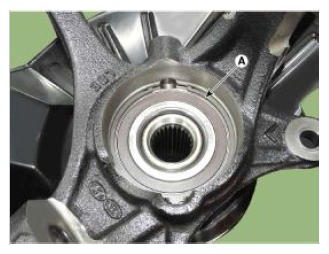

  1. Using the snap ring pliers, remove the snap ring (A).
    G12599061Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the hub assembly from the knuckle assembly.

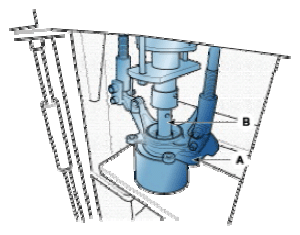

    1. Install the front knuckle assembly (A) on press.
    2. Lay a suitable adapter (B) upon the hub assembly shaft.
    G12599062Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the dust cover (A).
    G12599063Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the hub bearing inner race from the hub assembly.

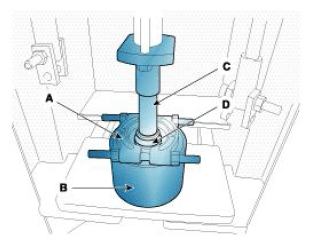

    1. Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
    2. Lay the hub assembly and tool (A) upon a suitable adapter (B).
    3. Lay a suitable adapter (C) upon the hub assembly shaft.
    4. Remove the hub bearing inner race (D) from the hub assembly by using press.
    G12599064Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the hub bearing outer race from the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay a suitable adapter (C) upon the hub bearing outer race.
    3. Remove the hub bearing outer race from the knuckle assembly by using press.
    G12599065Courtesy of HYUNDAI MOTOR AMERICA
  6. Replace hub bearing with a new one.
