Signal Waveform & Data

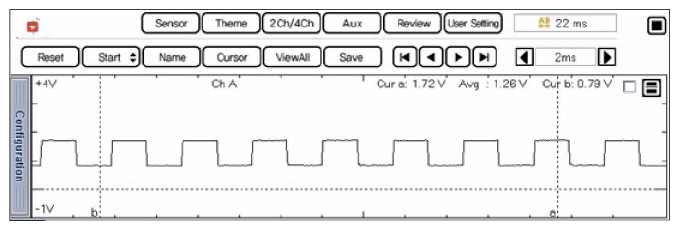

G12593301Courtesy of HYUNDAI MOTOR AMERICA

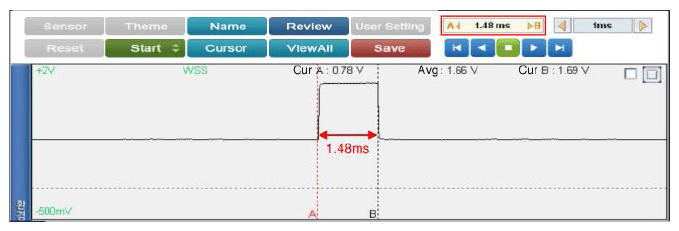

G12593302Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

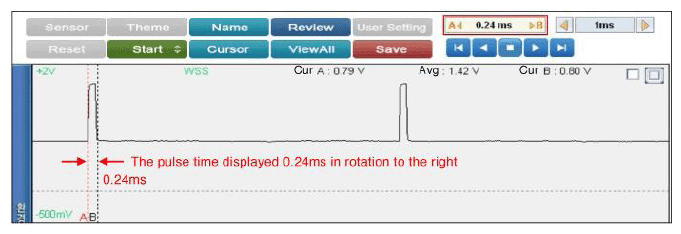

G12593303Courtesy of HYUNDAI MOTOR AMERICA

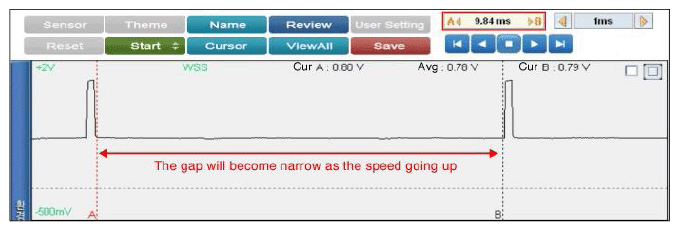

G12593304Courtesy of HYUNDAI MOTOR AMERICA

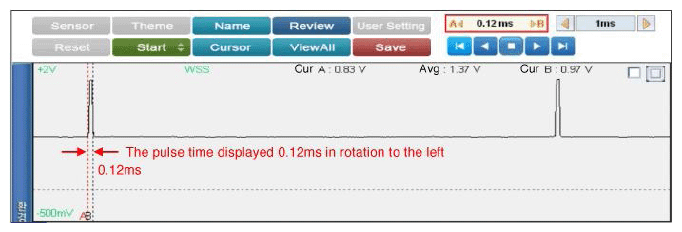

G12593305Courtesy of HYUNDAI MOTOR AMERICA

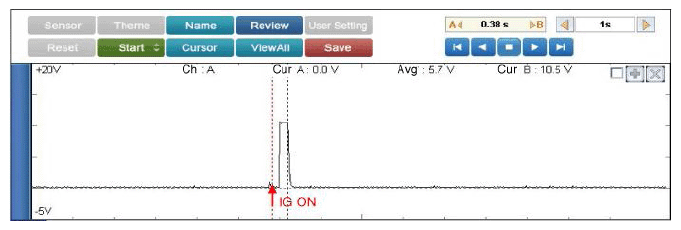

G12593306Courtesy of HYUNDAI MOTOR AMERICA
