Signal Waveform & Data

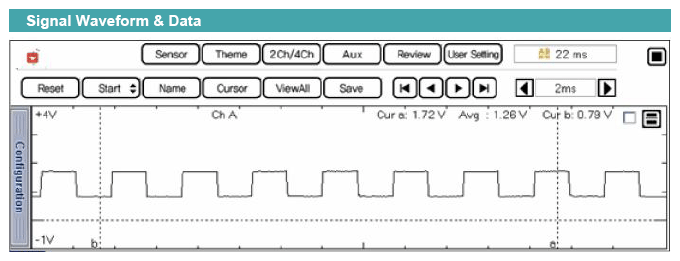

G12593274Courtesy of HYUNDAI MOTOR AMERICA

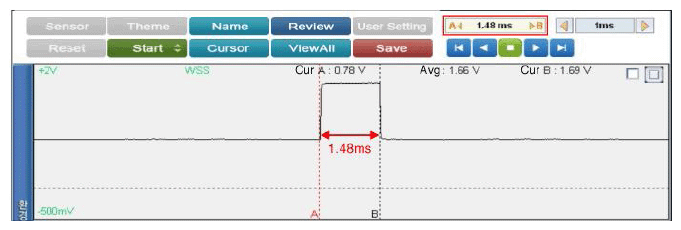

G12593275Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

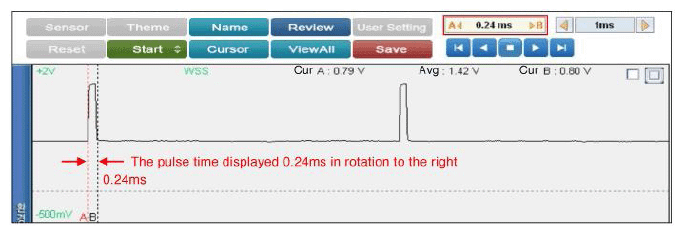

G12593276Courtesy of HYUNDAI MOTOR AMERICA

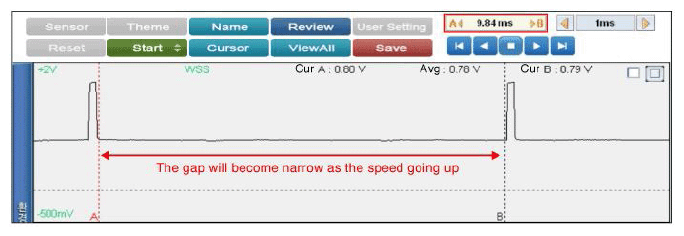

G12593277Courtesy of HYUNDAI MOTOR AMERICA

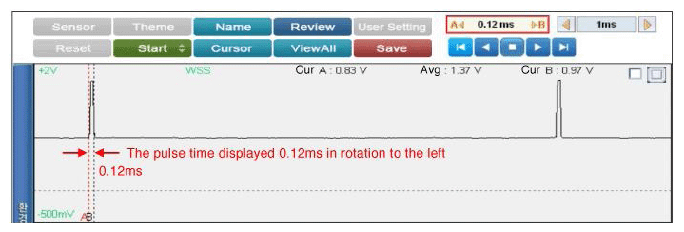

G12593278Courtesy of HYUNDAI MOTOR AMERICA

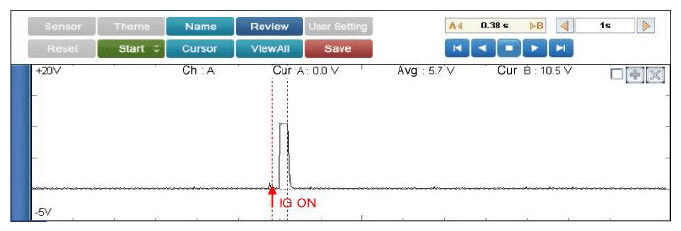

G12593279Courtesy of HYUNDAI MOTOR AMERICA
