Trunk Lock Module Inspection
- Remove the Tailgate Trim.
(Refer to Body - "LIFTGATE TRIM ")

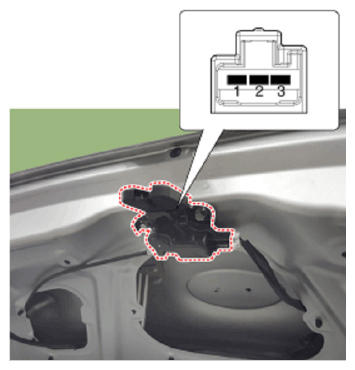

- Disconnect the connector from the actuator.

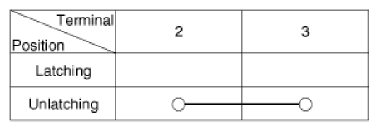

- Check for continuity between the terminals in each switch position according to the table.

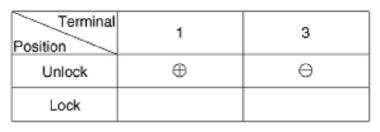

- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
