Components And Components Location: Components

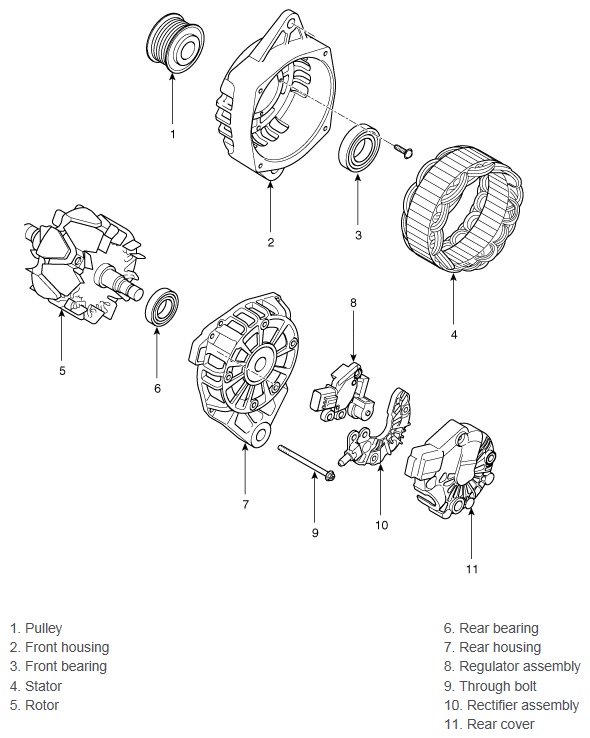

Fig 1: Locating Alternator Components

G12129291

Courtesy of HYUNDAI MOTOR AMERICA
