ASP Calibration Procedures: Notes

  1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
  2. Turn the self - diagnosis device after key is ON.
  3. Turn the steering wheel to straight ahead position.
  4. After Selecting the "vehicle model" and "system", select the "ASP Calibration" on GDS vehicle selection screen.

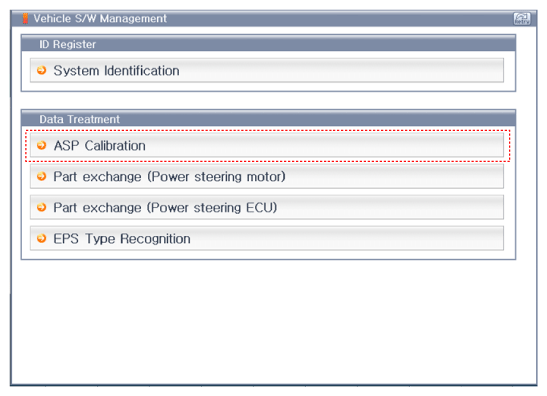

Fig 1: Screen Display - ASP Calibration On GDS Vehicle Selection (1 Of 2)
G12125437Courtesy of HYUNDAI MOTOR AMERICA

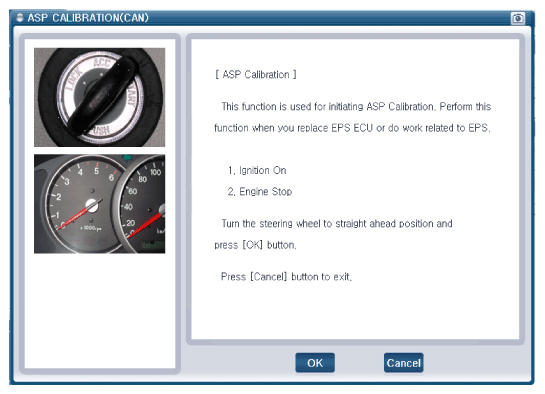

Fig 2: Screen Display - ASP Calibration On GDS Vehicle Selection (2 Of 2)
G12125438Courtesy of HYUNDAI MOTOR AMERICA
