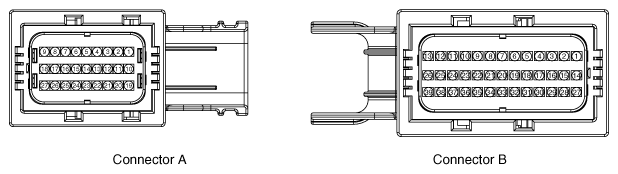

SRSCM Connector Terminal
SRSCM CONNECTOR PIN FUNCTIONS
| Pin | Function (Connector A) | Pin | Function (Connector B) |
|---|---|---|---|
| 1 | Ignition | 1 | Seat belt pretensioner [Driver] High |
| 2 | Telltale lamp | 2 | Seat belt pretensioner [Driver] Low |
| 3 | - | 3 | Side airbag [Passenger] Low |
| 4 | (1st stage) Driver airbag Low | 4 | Side airbag [Passenger] High |
| 5 | - | 5 | Curtain airbag [Driver] High |
| 6 | (2nd stage) Passenger airbag High | 6 | Curtain airbag [Driver] Low |
| 7 | Front impact sensor [Driver] High | 7 | Anchor pretensioner [Driver] High |
| 8 | Front impact sensor [Passenger] High | 8 | Anchor pretensioner [Driver] Low |
| 9 | CAN_High | 9 | - |
| 10 | - | 10 | - |
| 11 | - | 11 | Seat belt buckle switch [Passenger] High |
| 12 | Crash Output | 12 | Seat belt buckle switch [Driver] High |
| 13 | (1st stage) Driver airbag High | 13 | Ground |
| 14 | - | 14 | Seat belt pretensioner [Passenger] High |
| 15 | (2nd stage) Passenger airbag Low | 15 | Pressure side impact sensor [Driver] High |
| 16 | Front impact sensor [Driver] Low | 16 | Pressure side impact sensor [Passenger] High |
| 17 | Front impact sensor [Passenger] Low | 17 | Side airbag [Driver] Low |
| 18 | CAN_Low | 18 | Curtain airbag [Passenger] High |
| 19 | - | 19 | Side impact sensor [Passenger] High |
| 20 | - | 20 | Side impact sensor [Driver] High |
| 21 | - | 21 | Anchor pretensioner [Passenger] High |
| 22 | (1st stage) Passenger airbag High | 22 | - |
| 23 | (1st stage) Passenger airbag Low | 23 | - |
| 24 | - | 24 | Seat belt buckle switch [Passenger] Low |
| 25 | - | 25 | Seat belt buckle switch [Driver] Low |
| 26 | - | 26 | - |
| 27 | - | 27 | Seat belt pretensioner [Passenger] Low |
| 28 | Pressure side impact sensor [Driver] Low | ||
| 29 | Pressure side impact sensor [Passenger] Low | ||
| 30 | Side airbag [Driver] High | ||
| 31 | Curtain airbag [Passenger] Low | ||
| 32 | Side impact sensor [Passenger] Low | ||
| 33 | Side impact sensor [Driver] Low | ||
| 34 | Anchor pretensioner [Passenger] Low | ||
| 35 | - | ||
| 36 | - | ||
| 37 | - | ||
| 38 | - | ||
| 39 | - |
