Charging System - 1.6L T-GDI: Battery: Troubleshooting

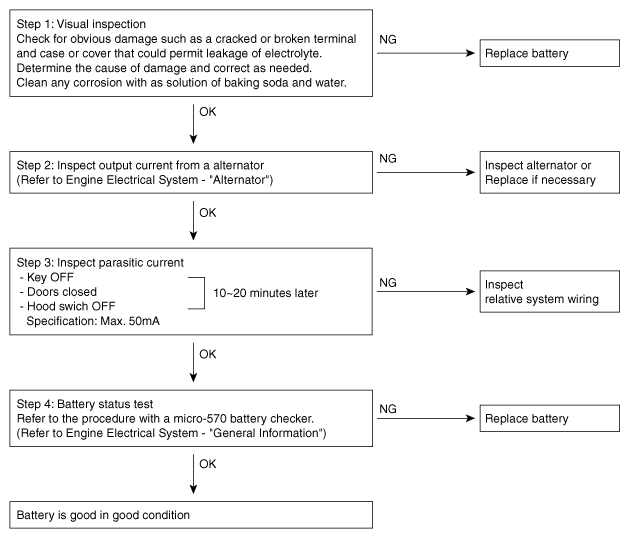

Fig 1: Battery Troubleshooting Chart

G12124645

Courtesy of HYUNDAI MOTOR AMERICA
