Home >> Hyundai >> 2017 >> Veloster Turbo, Standard Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 1.6L T-GDI >> Battery >> Components And Components Location >> Components

Components And Components Location: Components

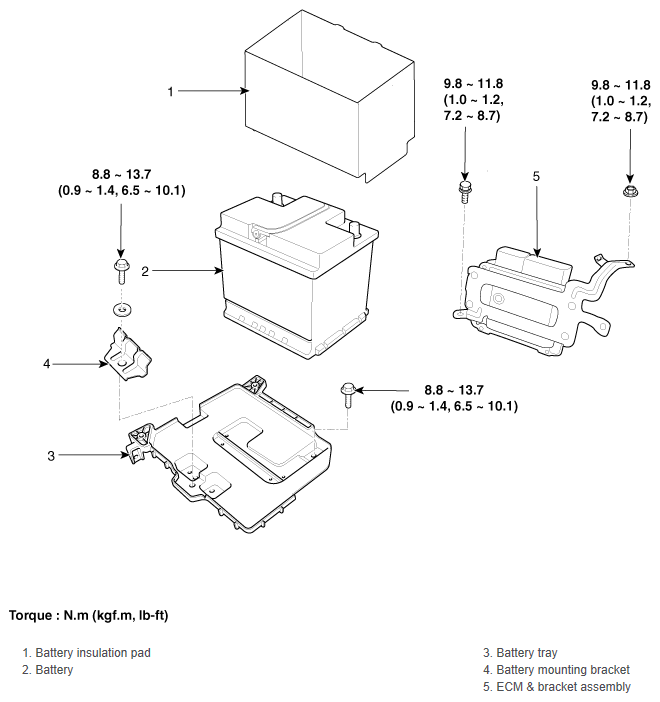

Fig 1: Locating Battery Components With Torque Specifications

G12124639

Courtesy of HYUNDAI MOTOR AMERICA
