Components And Components Location: Components

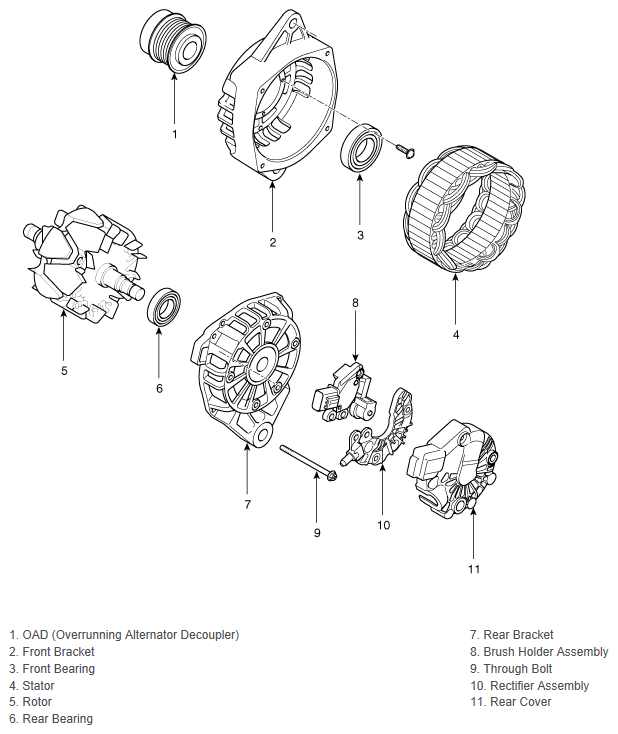

Fig 1: Exploded View Of Alternator

G12124623

Courtesy of HYUNDAI MOTOR AMERICA
