Components And Components Location: Components

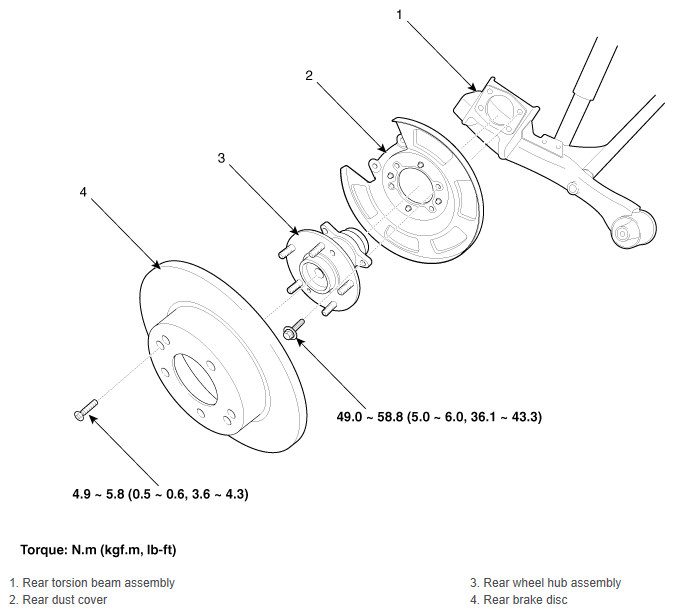

Fig 1: Rear Hub Carrier Components With Torque Specifications

G12125215

Courtesy of HYUNDAI MOTOR AMERICA
