Body Dimensions
>>
Rear Body
>>
Body Repair
Body Repair

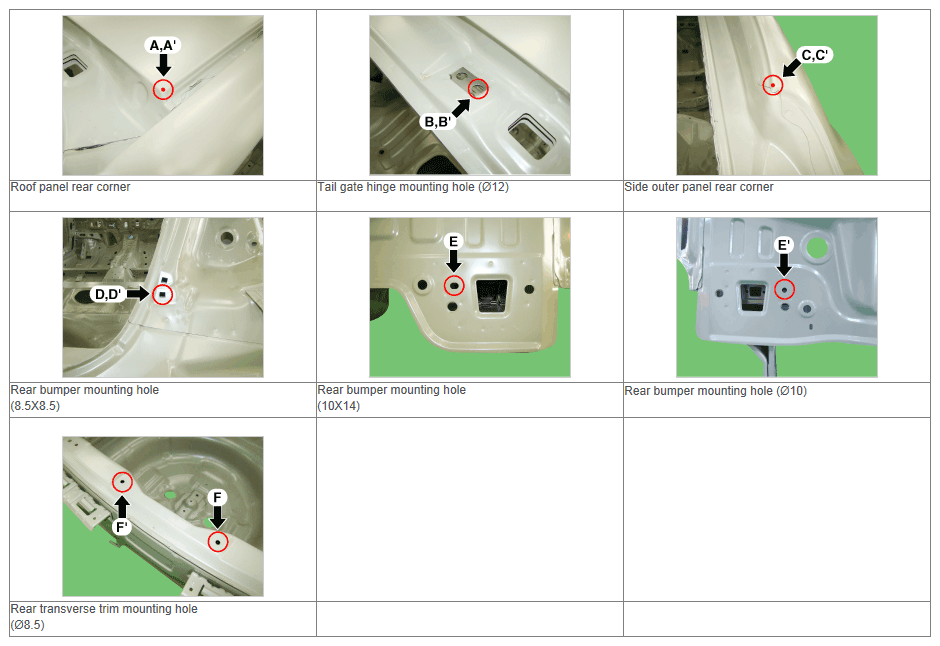

Fig 1: Rear Body Measurement Points Locations (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

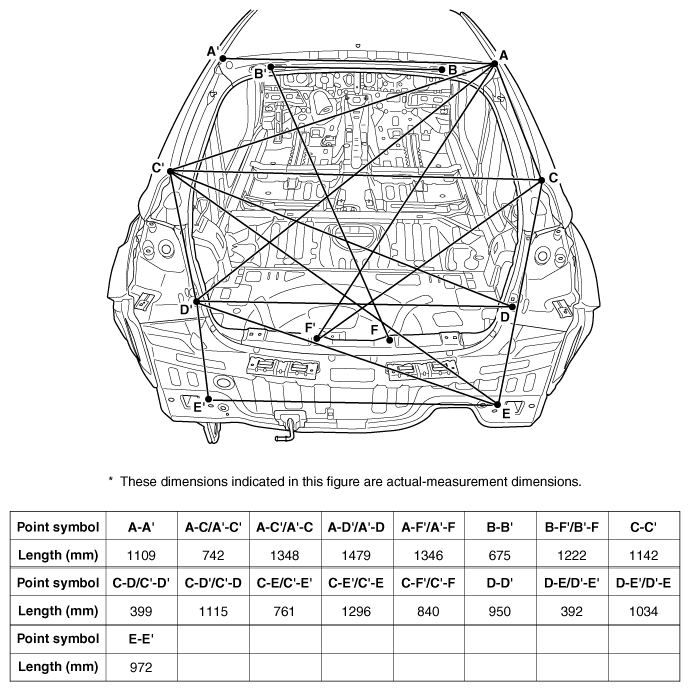

Fig 2: Rear Body Measurement Points Locations (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
