Front Body C
Front Body C

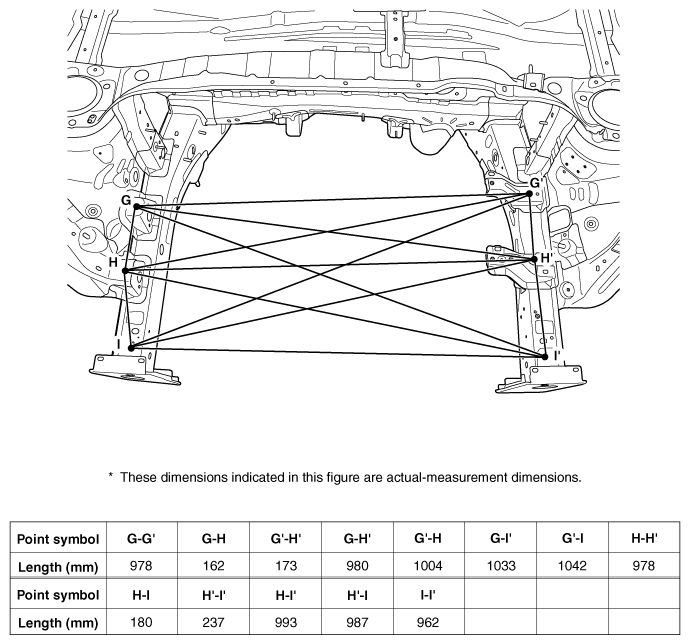

Fig 1: Front Body C Measurement Points Locations (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

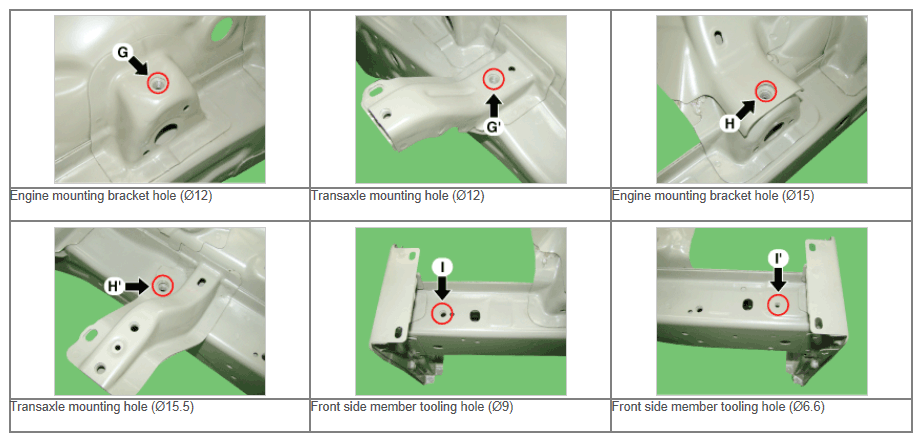

Fig 2: Front Body C Measurement Points Locations (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
