Front Body A

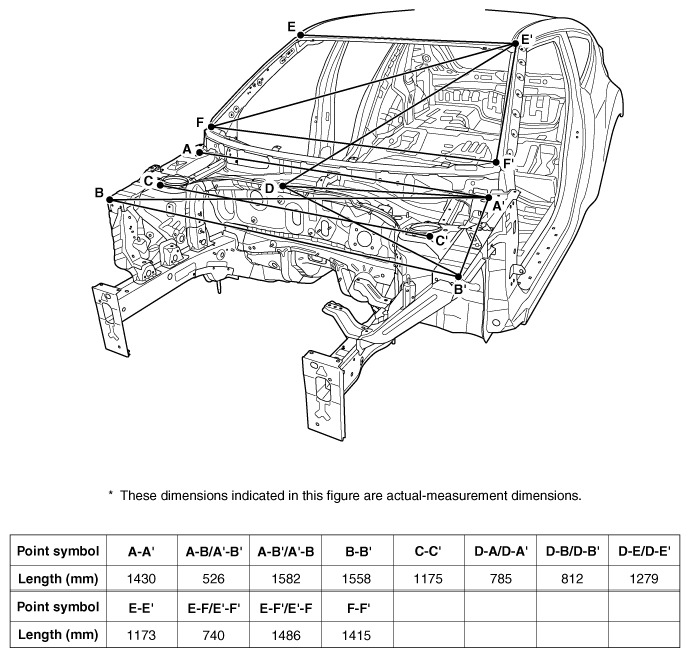

Fig 1: Front Body A Measurement Points Locations (1 Of 2)

G12125714

Courtesy of HYUNDAI MOTOR AMERICA

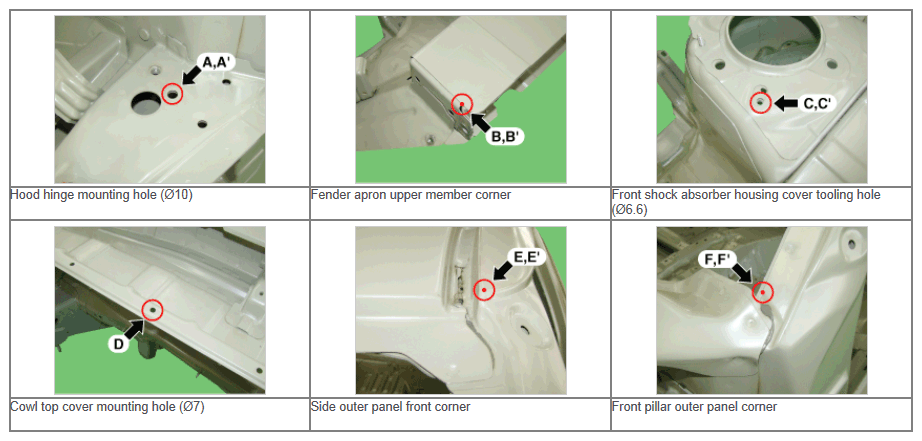

Fig 2: Front Body A Measurement Points Locations (2 Of 2)

G12125715

Courtesy of HYUNDAI MOTOR AMERICA
