Components And Components Location: Components

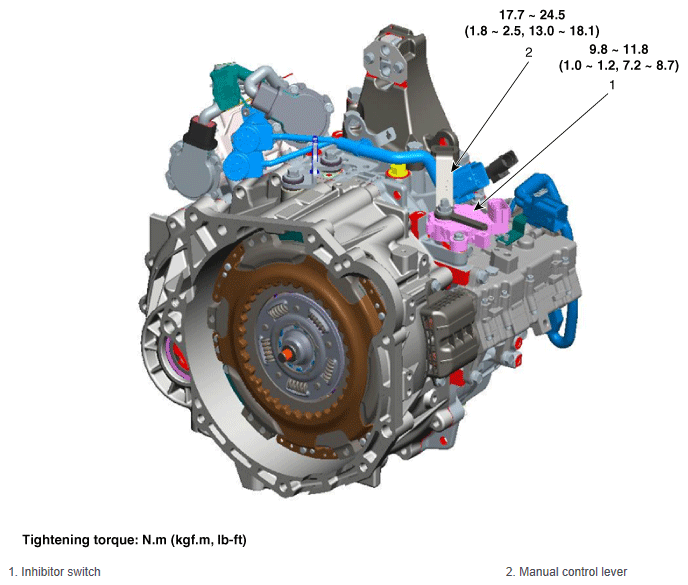

Fig 1: Inhibitor Switch Components With Torque Specifications

G12125095

Courtesy of HYUNDAI MOTOR AMERICA
