Components And Components Location: Components

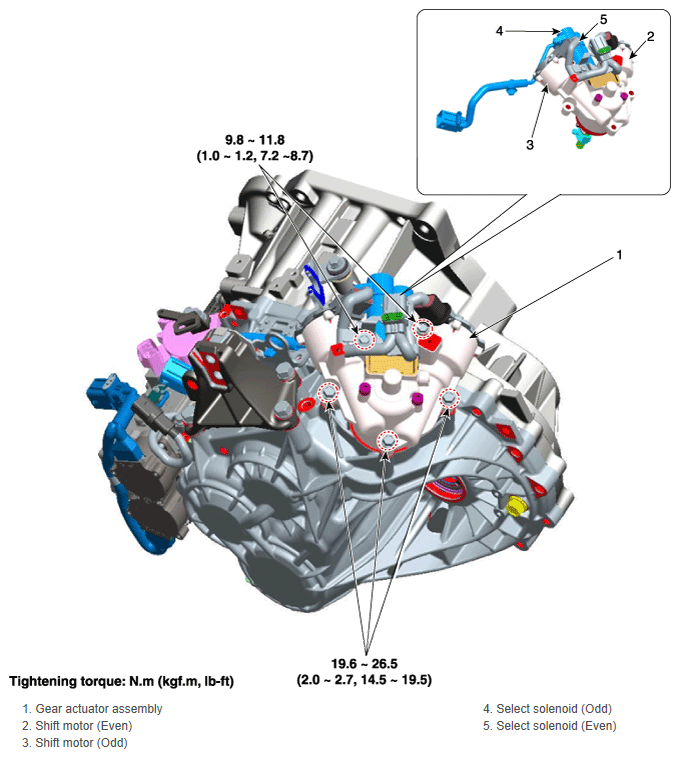

Fig 1: Gear Actuator Assembly Components With Torque Specifications

G12125071

Courtesy of HYUNDAI MOTOR AMERICA
