Repair Procedures: Installation

CAUTION:

Perform wear compensation when you have replaced the motor as well as the double clutch assembly or clutch actuator.

If you only replaced the motor, install the clutch actuator motor.
NOTE:
- Do not reuse a O-ring (A), and sealing bolt (B).
Fig 1: Installing O-Ring And Sealing Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.

Fig 2: Locating Clutch Actuator Assembly Dowel Pins
Courtesy of HYUNDAI MOTOR AMERICA
Perform the clutch touch point learning procedure using the GDS.

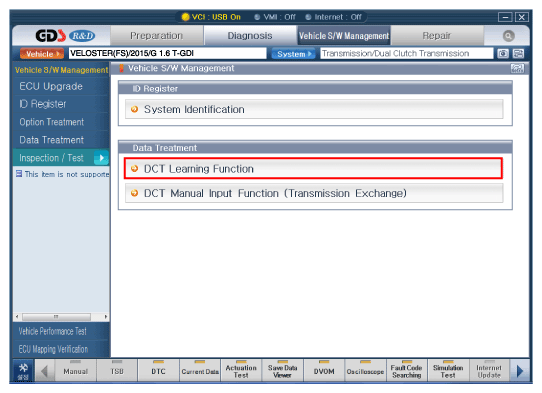

Fig 3: Screen Display - DCT Learning Function
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Even if you removed and reinstalled the clutch actuator, be sure to perform the touch point learning.
- If you have replaced the dual clutch assembly or clutch actuator, be sure to perform the touch point learning.
