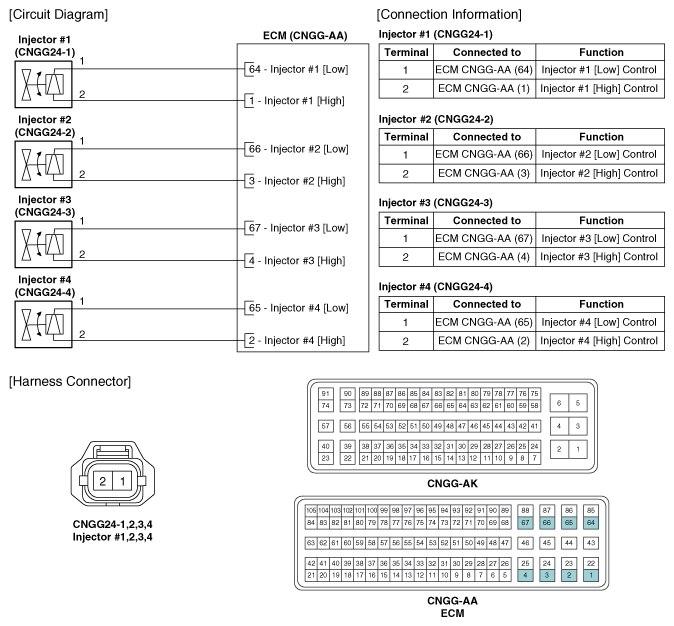

Home >> Hyundai >> 2017 >> Veloster Turbo, Automatic DCT Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L T-GDI >> Injector >> Schematic Diagrams >> Circuit Diagram >> A/T
