Components And Components Location: Components

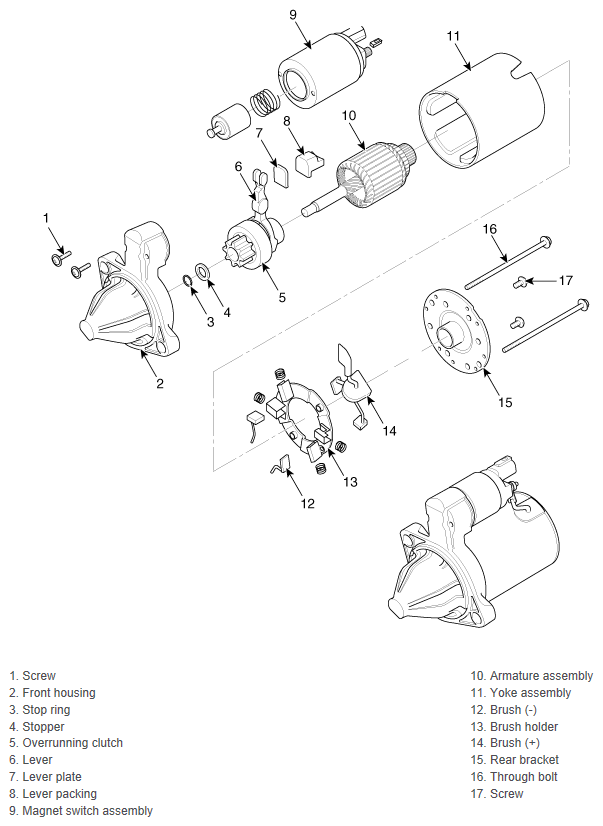

Fig 1: Locating Starter Components

G12124651

Courtesy of HYUNDAI MOTOR AMERICA
