Components And Components Location: Components

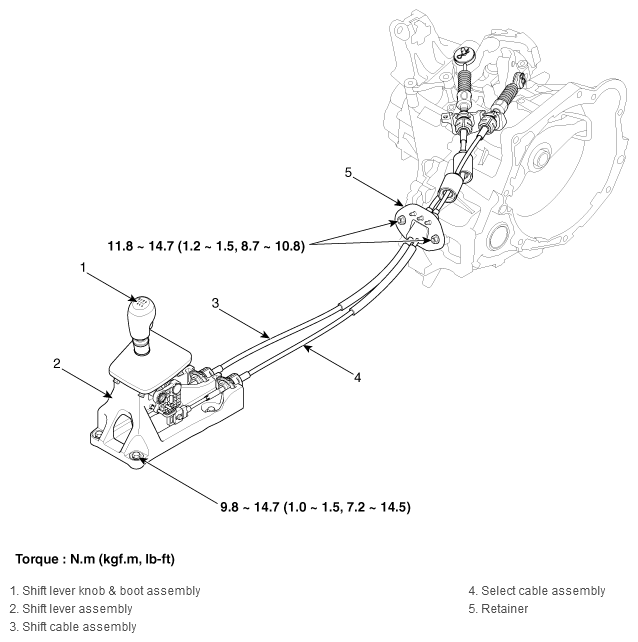

Fig 1: Shift Lever Components With Torque Specifications

G12129549

Courtesy of HYUNDAI MOTOR AMERICA
