Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Strut Assembly >> Components And Components Location >> Components

Components And Components Location: Components

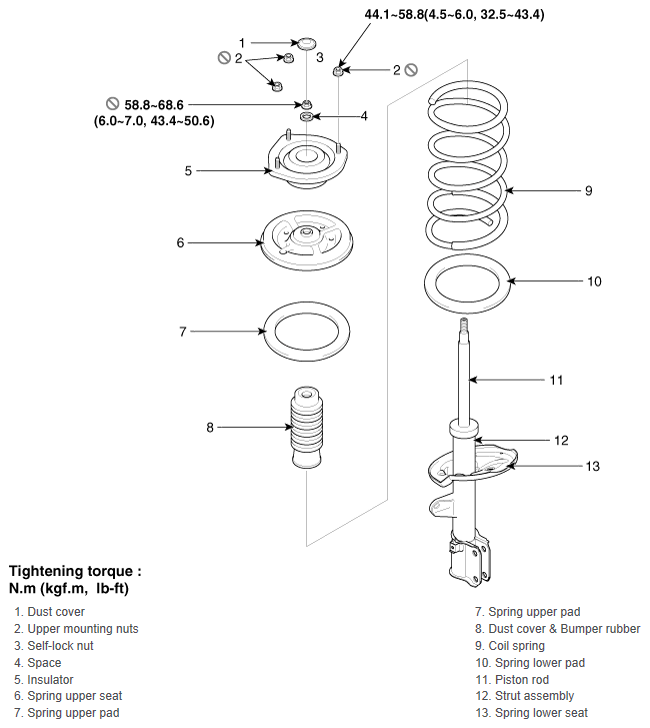

Fig 1: Locating Front Strut Assembly Components With Torque Specifications

G12125232

Courtesy of HYUNDAI MOTOR AMERICA
