Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Components And Components Location >> Components Location >> RHD

Components Location: RHD

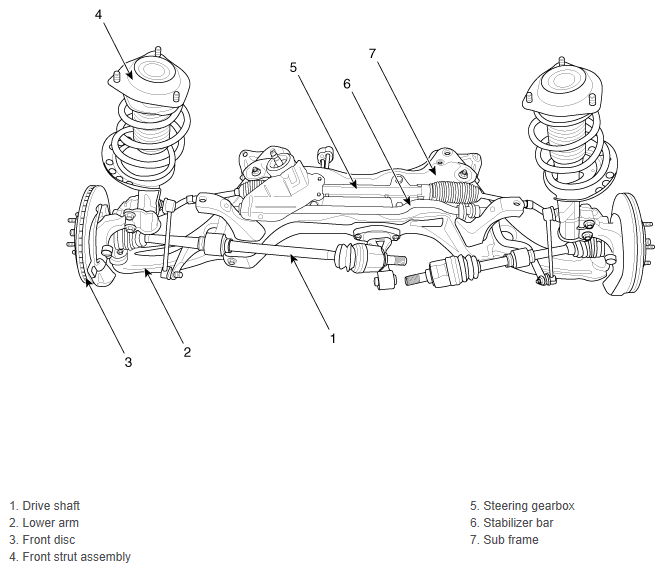

Fig 1: Front Suspension System Components Location (RHD)
G12125231Courtesy of HYUNDAI MOTOR AMERICA
