Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Steering >> Electronic Steering >> Motor Driven Power Steering >> Steering Gear Box >> Components And Components Location >> Components

Components And Components Location: Components

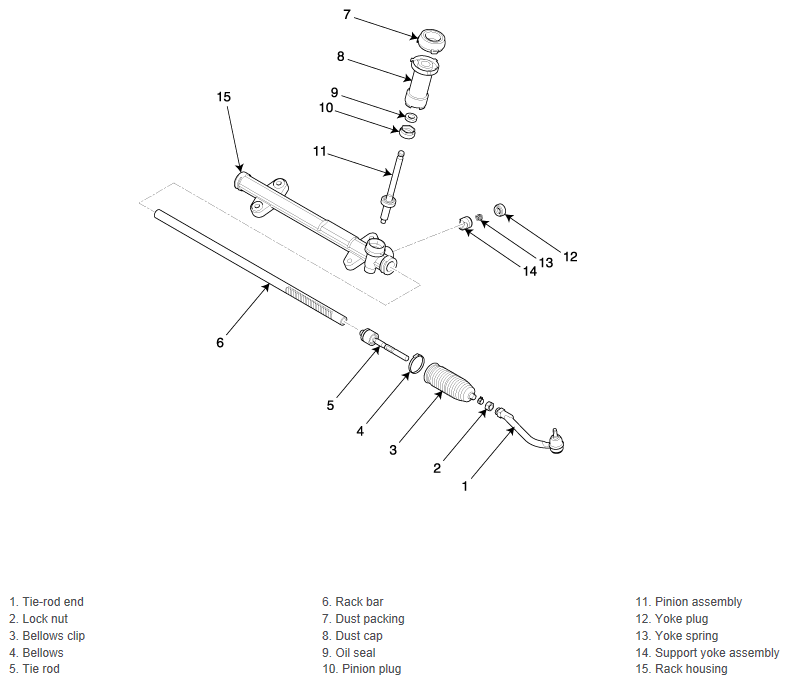

Fig 1: Locating Steering Gear Box Components

G12125441

Courtesy of HYUNDAI MOTOR AMERICA
