Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Seat Belts >> Components And Components Location >> Components

Components And Components Location: Components

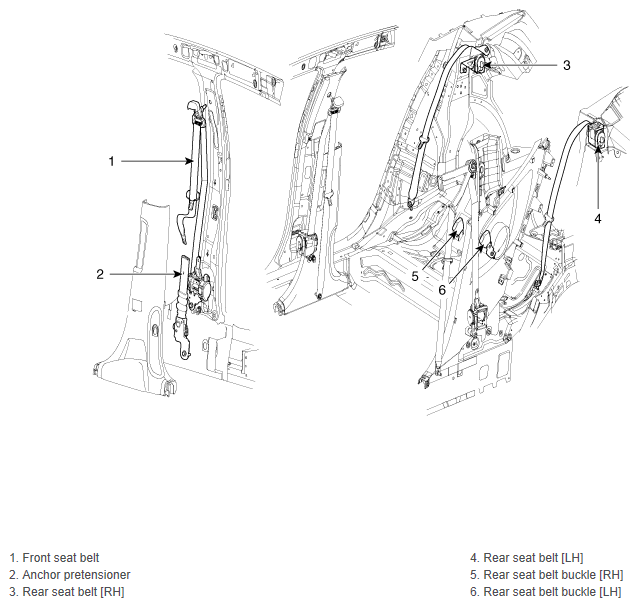

Fig 1: Locating Seat Belt Components

G12126097

Courtesy of HYUNDAI MOTOR AMERICA
