Signal Waveform & Data

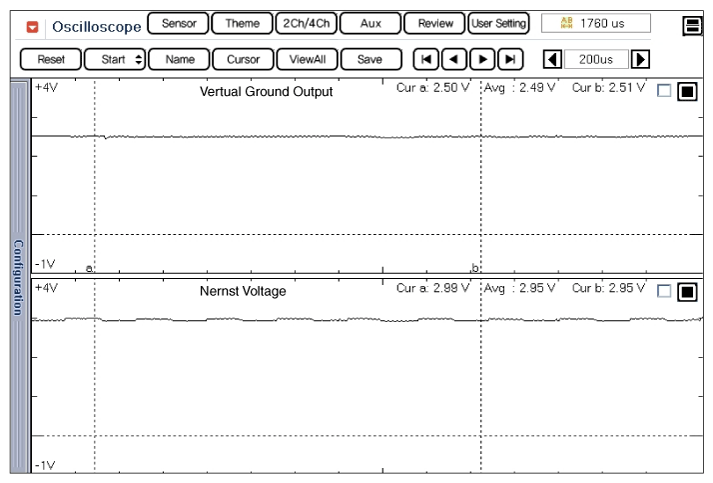

Fig 1: Scantool Display - Signal Waveform & Data (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

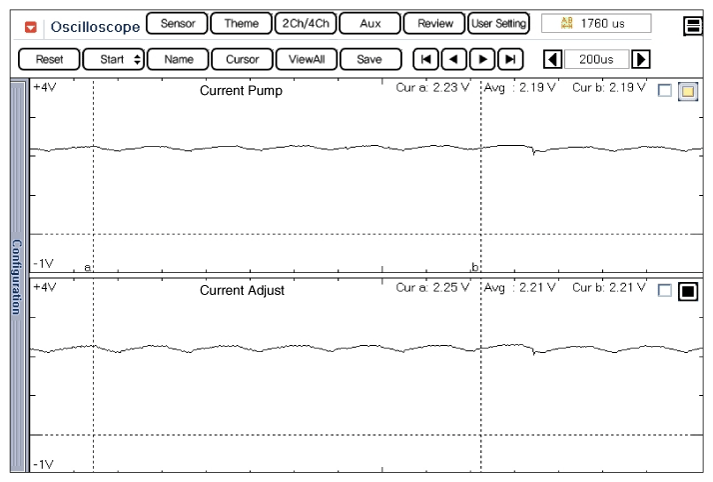

Fig 2: Scantool Display - Signal Waveform & Data (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Waveform of sensor Current Pump at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically. Waveform of sensor Virtual Ground Output at IG KEY "ON" and Engine running. 2.5V is displayed.

Waveform of sensor Current Adjust at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically. Waveform of sensor Nearest Voltage at IG KEY "ON" and Engine running. 2.9V is displayed.
