Components And Components Location: Components

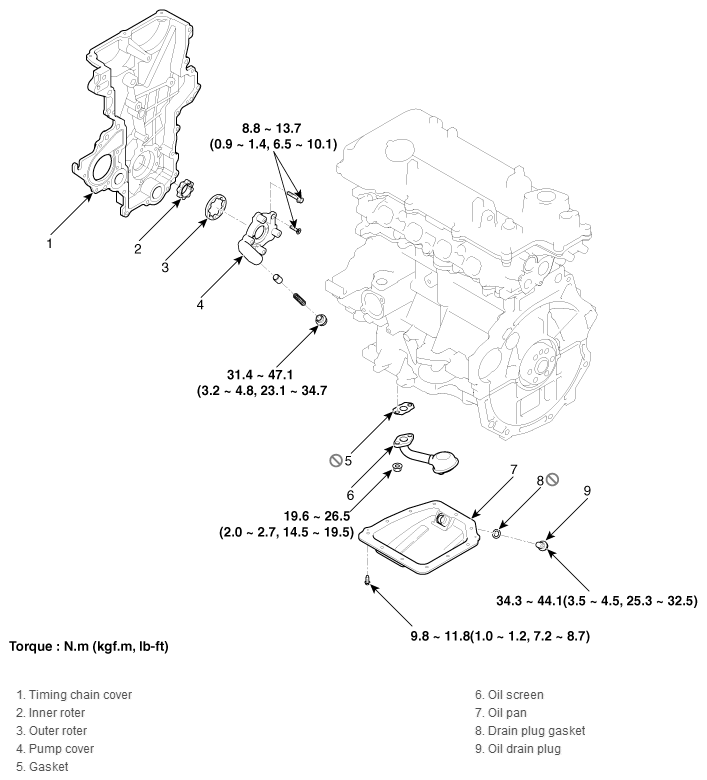

Fig 1: Locating Oil Pump Components With Torque Specifications

G12129191

Courtesy of HYUNDAI MOTOR AMERICA
