Interior D

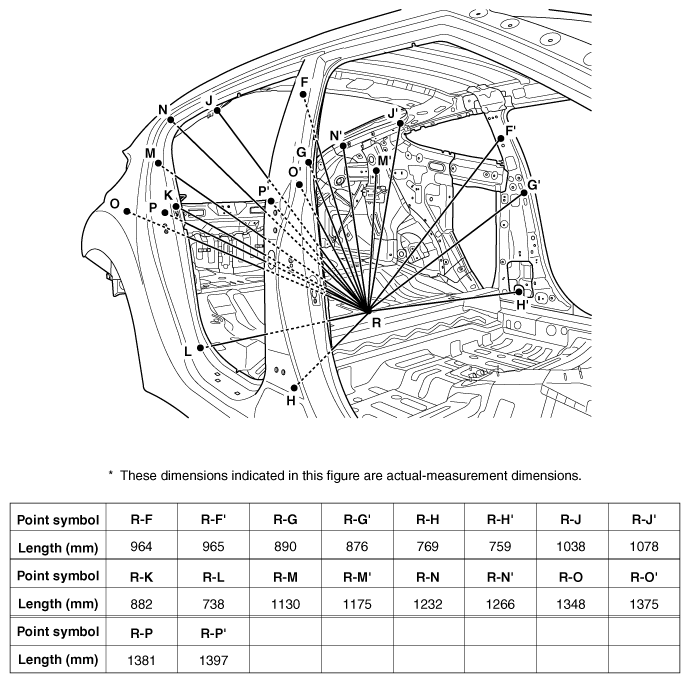

Fig 1: Interior D Measurement Points Locations (1 Of 3)
G12125736Courtesy of HYUNDAI MOTOR AMERICA

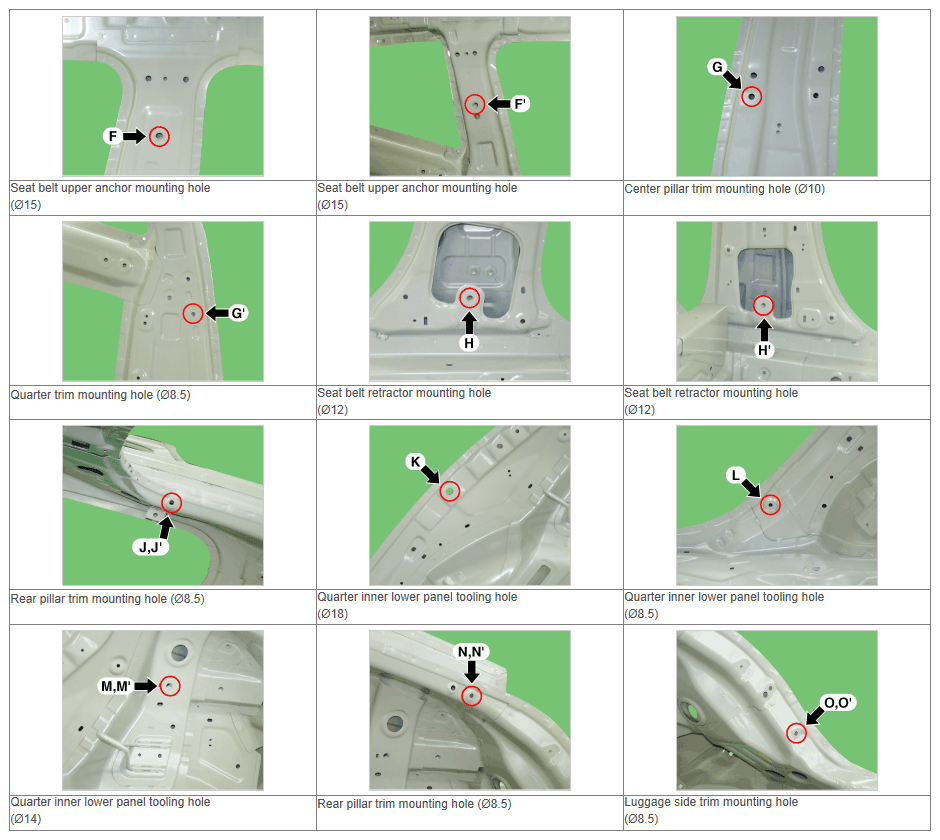

Fig 2: Interior D Measurement Points Locations (2 Of 3)
G12125737Courtesy of HYUNDAI MOTOR AMERICA

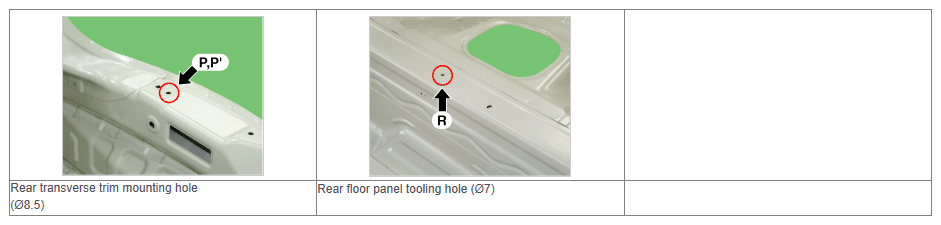

Fig 3: Interior D Measurement Points Locations (3 Of 3)
G12125738Courtesy of HYUNDAI MOTOR AMERICA
