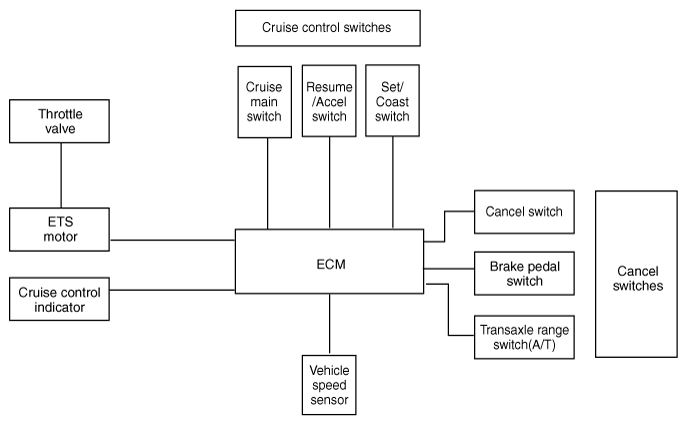

System Block Diagram
* ETS: Electronic Throttle System
COMPONENT PARTS AND FUNCTION OUTLINE CHART
| Component part | Function | |
|---|---|---|
| Vehicle-speed sensor | Converts vehicle speed to pulse. | |
| ECM | Receives signals from sensor and control switches. | |
| Cruise control indicator | Illuminate when CRUISE main switch is ON (Built into cluster) | |
| Cruise Control switches | ON/OFF switch | Switch for automatic speed control power supply. |
| Resume/Accel switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) | |
| Set/Coast switch | ||
| Cancel switches | Cancel switch | Sends cancel signals to ECM. |
| Brake-pedal switch | ||
| Transaxle range switch (A/T) | ||
| ETS motor | Regulates the throttle valve to the set opening by ECM. | |
