Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Timing System - 1.6L GDI >> Timing Chain >> Components And Components Location >> Components

Components And Components Location: Components

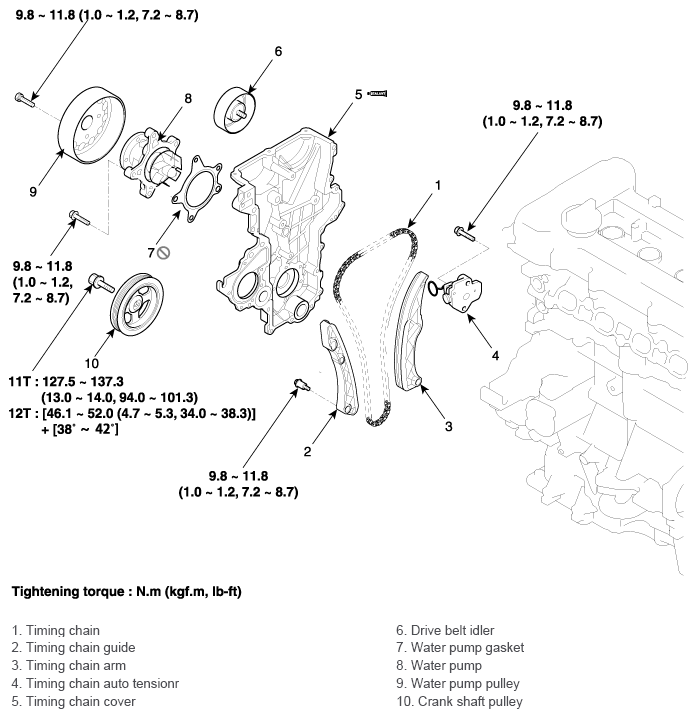

Fig 1: Locating Timing Chain Components With Torque Specifications

G12128947

Courtesy of HYUNDAI MOTOR AMERICA
