Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub/Knuckle >> Components And Components Location >> Components

Components And Components Location: Components

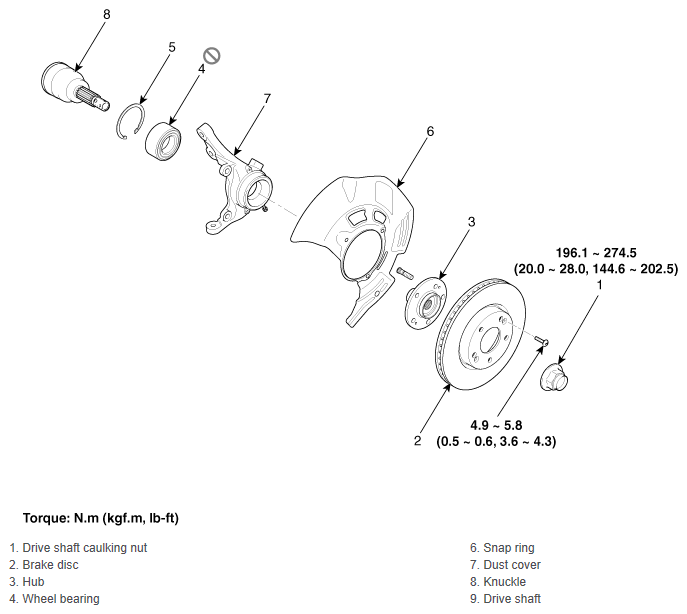

Fig 1: Front Hub/Knuckle Components With Torque Specifications

G12125168

Courtesy of HYUNDAI MOTOR AMERICA
