Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector In Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then select "CODE SAVING"

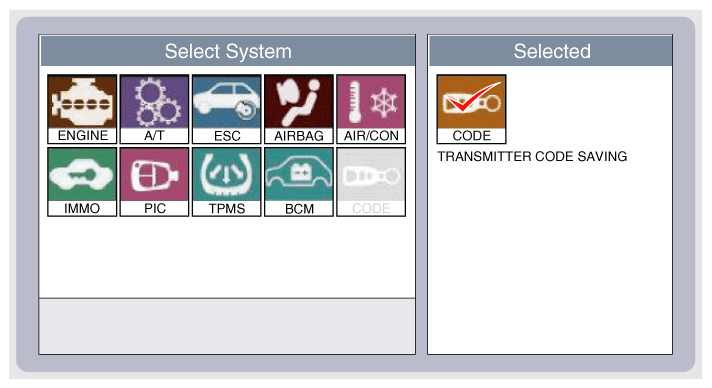

Fig 2: Screen Display - Selecting Transmitter Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

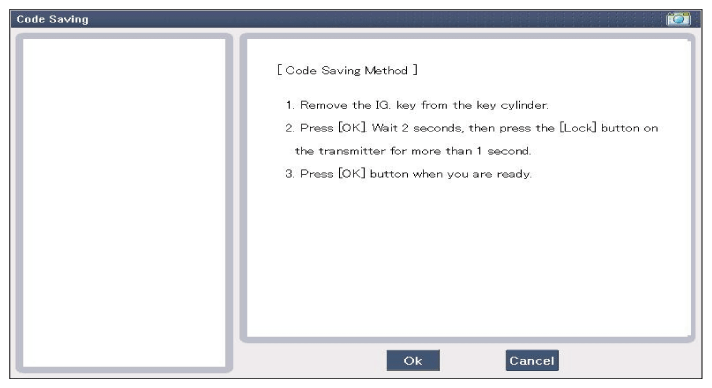

Fig 3: Screen Display - Code Saving Method Screen
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

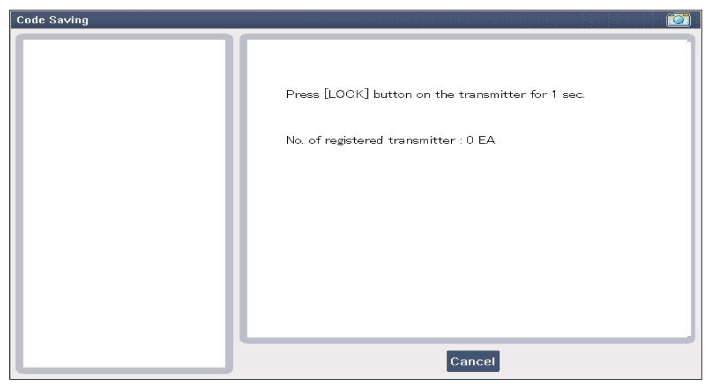

Fig 4: Screen Display - Code Saving Pressing Lock Button (1 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

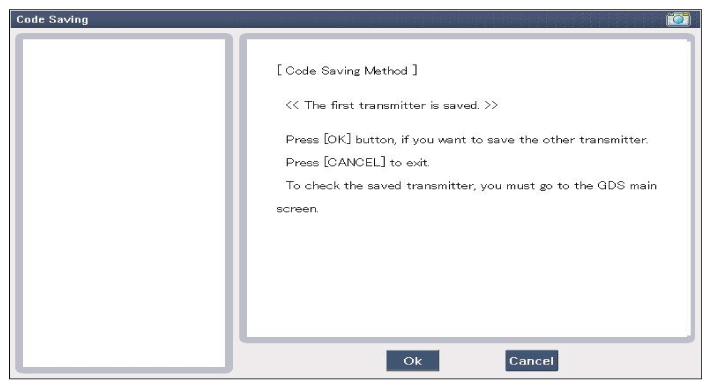

Fig 5: Screen Display - Code Saving First Transmitter Saved (2 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Screen Display - Code Saving Pressing Lock Button (3 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

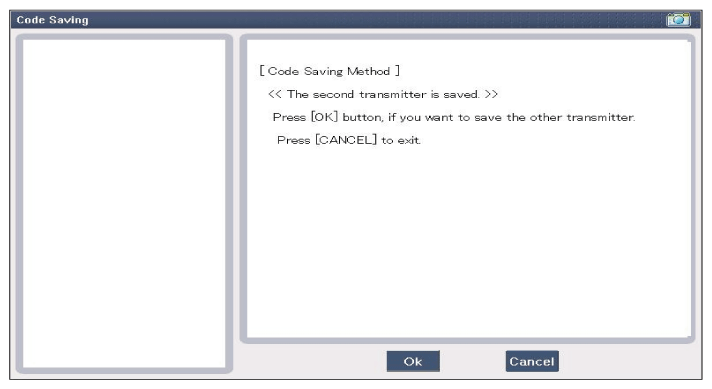

Fig 7: Screen Display - Code Saving Second Transmitter Saved (4 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Screen Display - Code Saving Pressing Lock Button (5 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

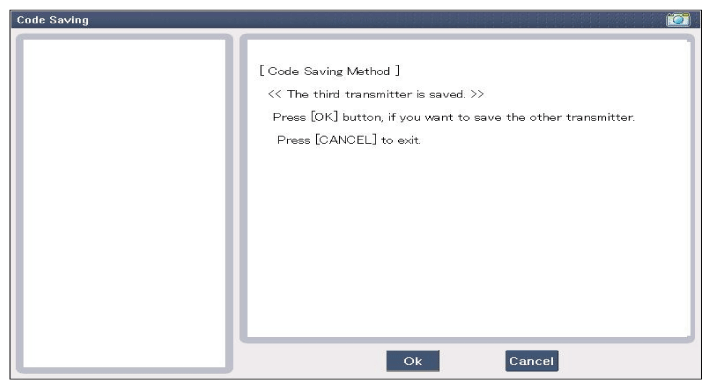

Fig 9: Screen Display - Code Saving Third Transmitter Saved (6 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

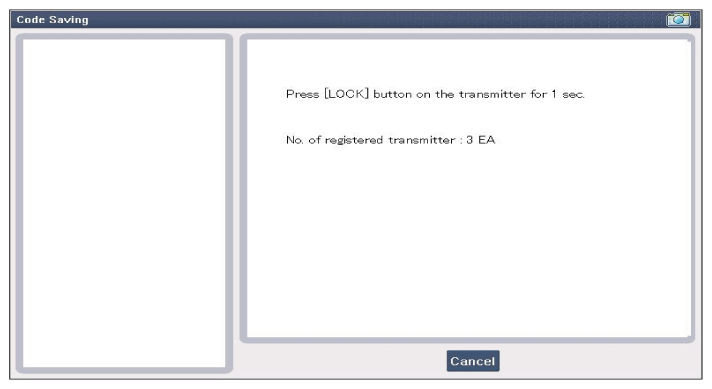

Fig 10: Screen Display - Code Saving Pressing Lock Button (7 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

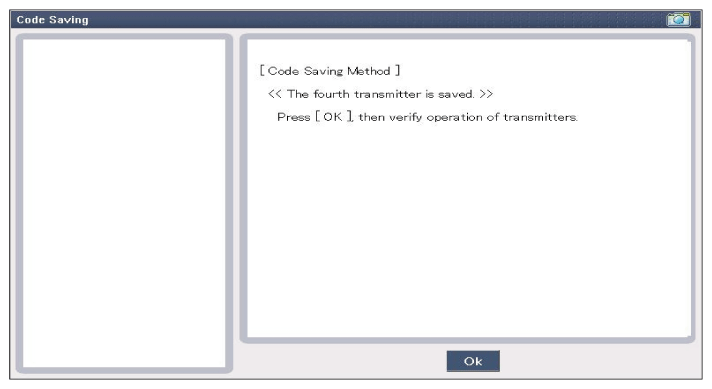

Fig 11: Screen Display - Code Saving Fourth Transmitter Saved (8 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Screen Display - Code Saving Pressing Lock Button (9 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
