Components And Components Location: Components

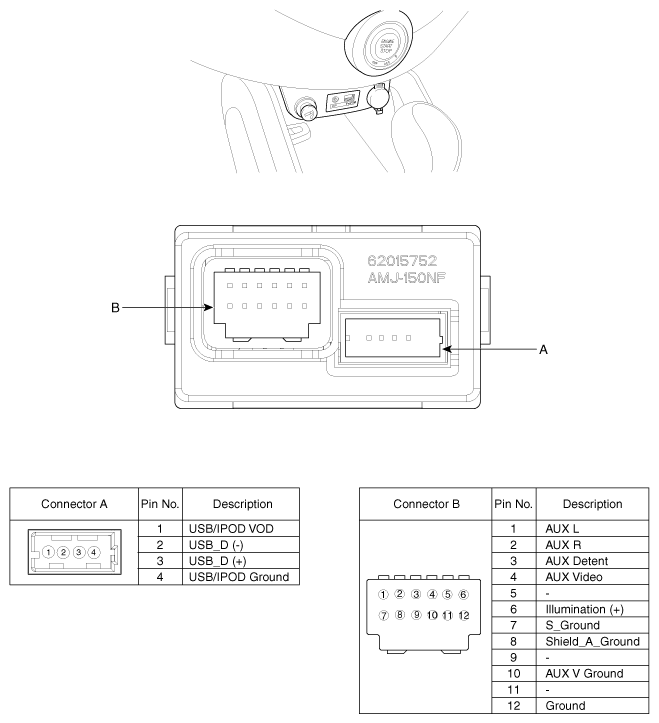

Fig 1: Multimedia Jack Components & Terminal Descriptions

G12126195

Courtesy of HYUNDAI MOTOR AMERICA
