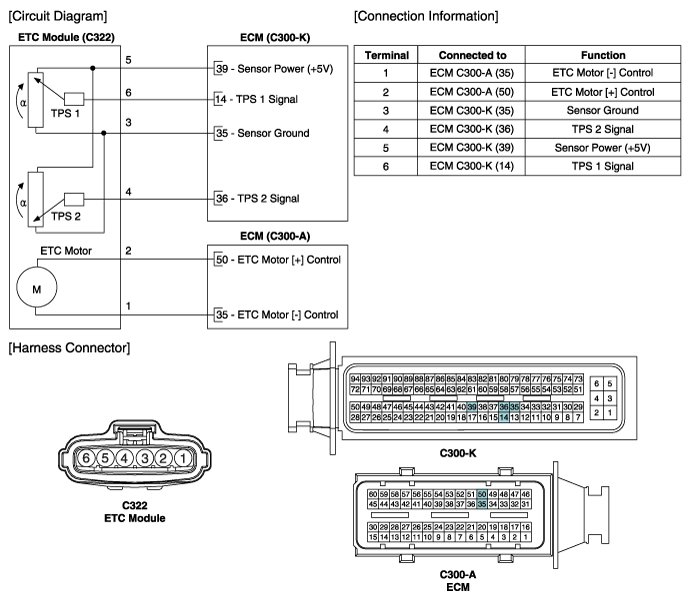

Home >> Hyundai >> 2017 >> Tucson Value, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> ETC Electronic Throttle Control System >> Schematic Diagrams >> Circuit Diagram
